AES 7707 RF Subscriber 31
Part No. 40-7707 Rev. 3a 10/23/2017

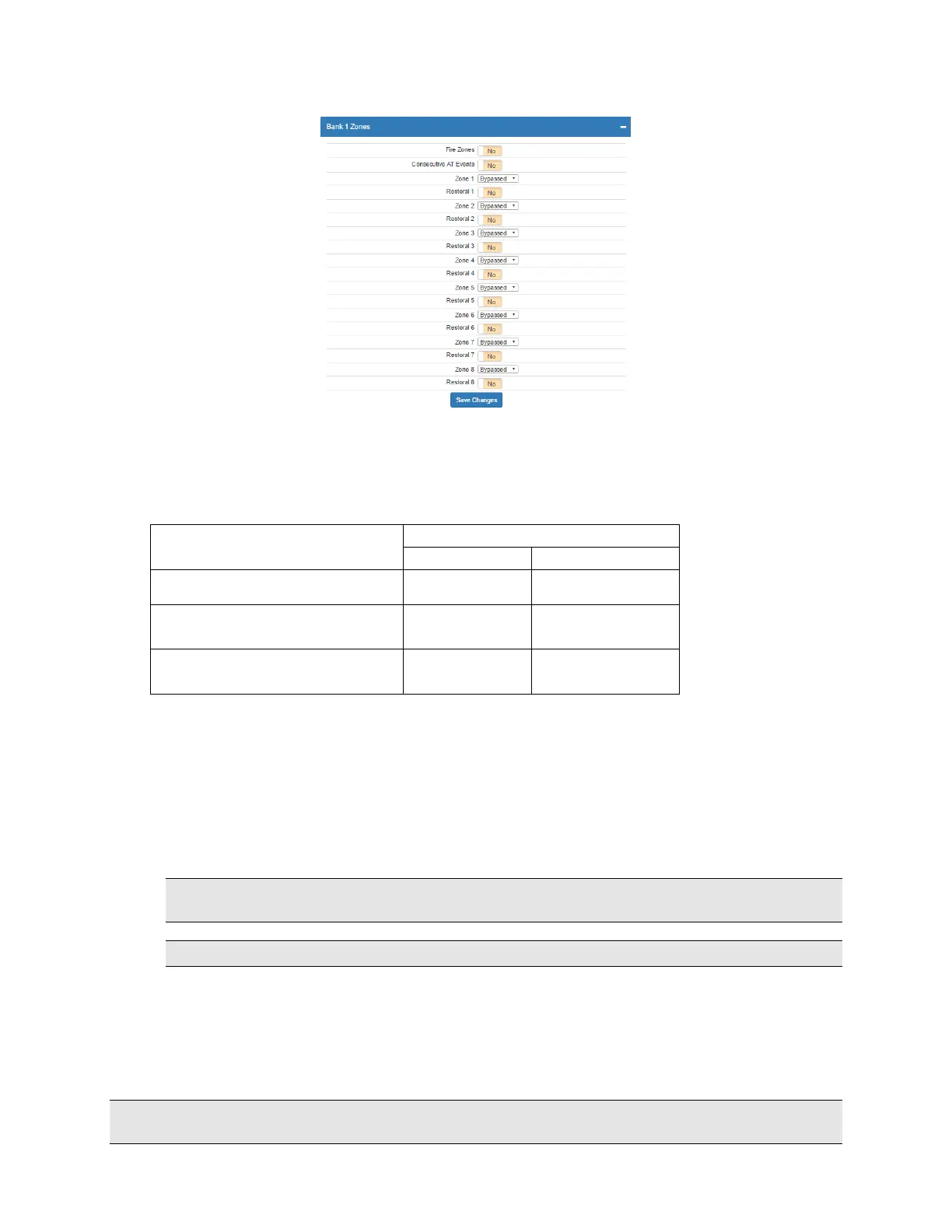

A Model 7711 8 Zone Input Card menu appears as shown below:
The 7711 Zone Input Card for use with Fire Alarm Control Panels (FACP) can be programmed for:
Fire – The EOL 2.2k ohm resistor circuit reports trouble for open circuit and alarm for short circuit.
Bypassed – Zone input is ignored.
2. Set the Fire Zones switch to Yes to set the input type as fire.
3. Set Consecutive AT Events (Consecutive Alarm/Trouble Events) to Yes for verbose reporting of alarm
and trouble messages. When Consecutive AT Events is enabled and an event occurs, an alarm or trouble
message will be sent regardless of the number events. One example is the sequence of messages “alarm –
trouble – alarm – trouble …” Set to No for non-verbose reporting. When disabled, an alarm and a trouble
will be sent once only, even when a zone might be continually changing state multiple times.
4. Select the zone behavior (either Bypassed or Fire) for each zone using the dropdown box.
Important! Wiring of any FACP relay output to any 7707 zone input must use an EOL resistor supervised
zone programmed as Fire (F). Zone inputs Z1 through Z8 on the Model 7711 meet this requirement.
Note: Set all unused zones to Bypassed. Do NOT install EOL resistors on Bypassed zones.
8.13 Restoral
Restoral messages are sent for the zone when the Restoral switch is set to Yes. When finished with Configuration,
save the configuration by clicking Save Changes.
7794A IntelliPro Configuration
Note: You will need a copy of the 7794A IntelliPro Fire Installation Manual (AES P/N 40-7794A) for IntelliPro
configuration settings.
