AES 7707 RF Subscriber 18
Part No. 40-7707 Rev. 3a 10/23/2017
6.5 Antenna and Surge Suppressor Grounding
A protective surge suppressor (AES Model 7230) must be installed in line with any type of remotely installed
antenna outside a building as shown in the diagram below. The surge suppressor and remote antenna must be earth-
grounded. For U.S. installation, check National Electrical Code (NEC), state, or local electrical code requirements.
For Canadian installations, check Canadian Electrical Code, province, or local electrical code requirements.

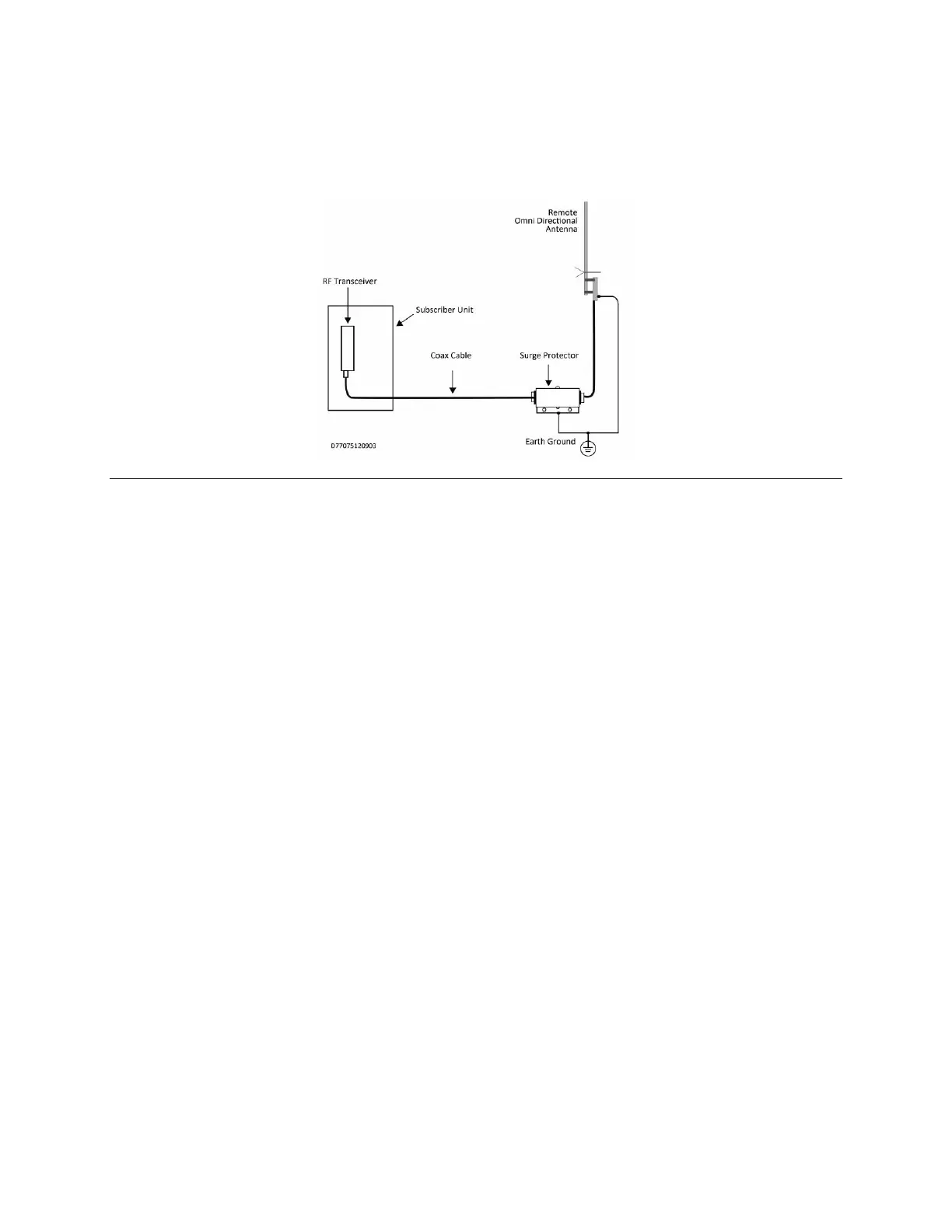

Figure 5. Antenna and Surge Suppressor Grounding
