AES 7707 - System Configuration Diagram; System Communication Configuration

AES 7707 RF Subscriber 20
Part No. 40-7707 Rev. 3a 10/23/2017

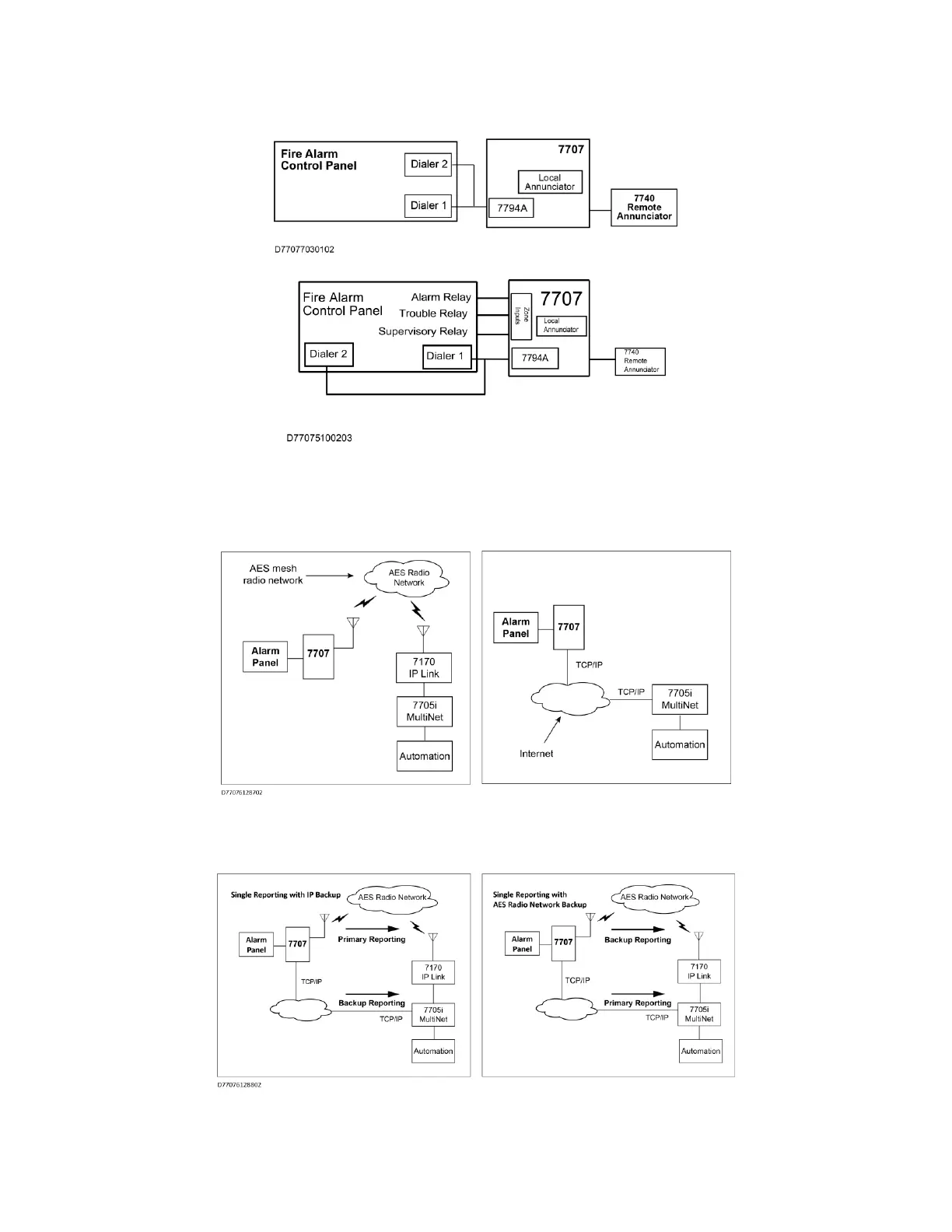

7.2 System Configuration Diagram
7.3 System Communication Configuration
Sole Path (Single Reporting) utilizes either the AES mesh radio network or a TCP/IP broadband connection to
deliver messages from the subscriber to the central monitoring station.
Single Reporting with Backup utilizes either the AES mesh radio network, or a TCP/IP broadband connection, to
deliver messages from the subscriber to the central monitoring station. The Backup Reporting path works when the
Primary Reporting path is down.
