Testing in SmartAuto
®
OTDR

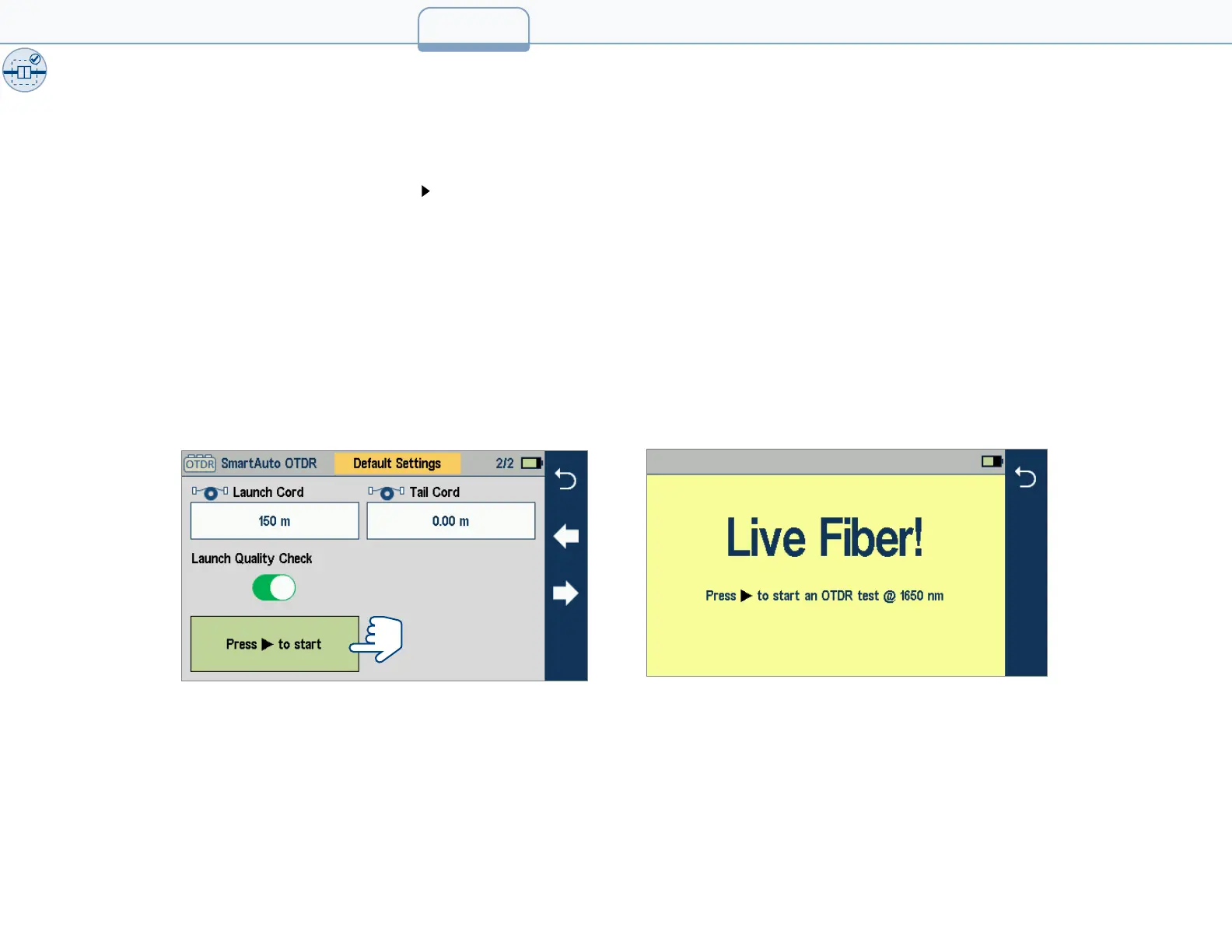

To Start SmartAuto Test
Initiate the SmartAuto test by touching ‘Press to start’ soft key or pressing Test start/stop button.
1. FlexScan begins testing with the Live Fiber check and if a live ber is NOT detected, proceeds to next step.
2. If the Launch Quality check is enabled, FlexScan checks loss and reectance of the OTDR connection.
3. If launch quality is ‘Good’, FlexScan starts testing at both wavelengths using SmartAuto settings.
4. When testing is completed, FlexScan displays the LinkMap
®
screen, which is a primary display in SmartAuto OTDR mode.
Live Fiber Detection
To prevent service disruption on live PONs, FlexScan performs a Live Fiber check prior to every OTDR test.
If a live ber is detected, FS200-100/300/303 models display a warning screen and do not allow testing; FS200-60/-303/-304 displays a warning
and allows the user to complete a test at 1650 nm only.
3.5_SA Test
21
