Configuring Fiber Type
• G.65x Fiber Settings may be viewed but NOT changed.
• User Settings may be viewed and changed.
To View G.65x Fiber Settings
• While in the SmartAuto Settings screen, make sure a G.65x ber type is displayed in the Fiber Type eld.
• If not, touch the Fiber Type eld to display the Fiber Type menu and touch one of the G.65x ber types to select.
• When back in the SmartAuto Settings screen, touch and hold the displayed G.65x ber type to open and view the default settings as follows:
– Group Index of Refraction (GIR)
– Backscatter Coefcient (BC)
– Fiber Attenuation (A; Loss-per-Distance)
• Touch Back to return to the SmartAuto Settings screen.
3.3_FIBER TYPE
18

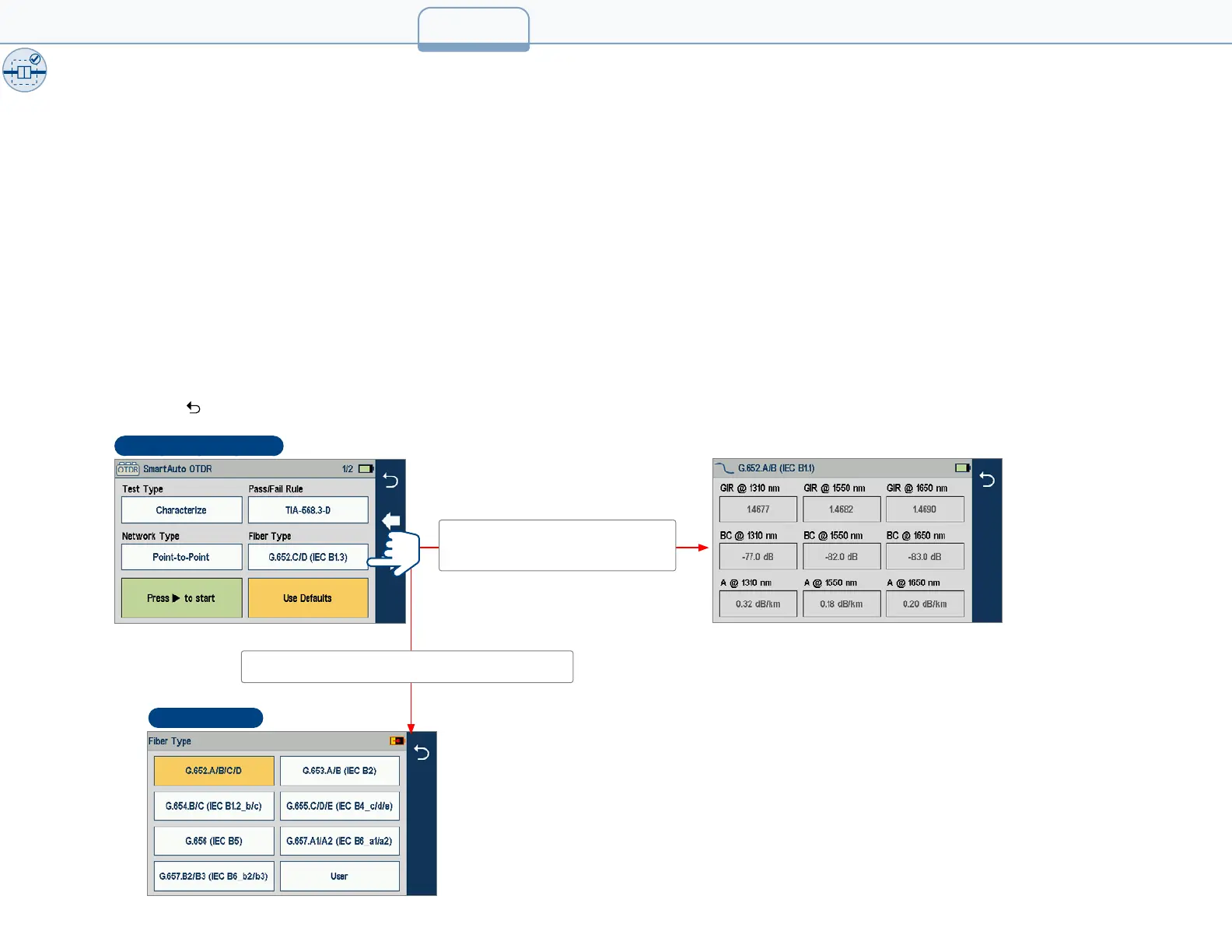

SmartAuto Settings Screen
Fiber Type Screen
Touch and hold to view the
default settings
Touch to select one of the G.65x ber types
