Results: Saving, Recalling, Sharing
Understanding FS200 File Naming Structure
Test results may be stored in the FlexScan Internal memory or on USB. Saved test results are organized into a Cable sub-folder within a Job folder.
A name of the saved result consists of several parameters, which are dened in the Save As screen as follows:
The Cable folder is named: OTDREnd_FarEnd_Cable
OTDR test results are named : OTDREnd-FarEnd-Cable_Link_Wavelength.SOR
Power Meter test results are named: OTDREnd-FarEnd-Cable.ATD.
Results from one or more wavelengths and one or more bers may be stored in a single .ATD le.
Cables Folders
Results, Internal Results, USB
Jobs Folders
Note: FlexScan can be congured to automatically save results and optionally send results to FlexApp via Bluetooth each time a test is
completed. See “To Congure Auto-Save (and Optional Send):” on page 12 for details.
8_Results
34
Cable Name
OTDREnd-FarEnd-Cable_Link_Wavelength.SOR
S13 for 1310 nm
S15 for 1550 nm
S16 for 1625 or 1650 nm
Link Number

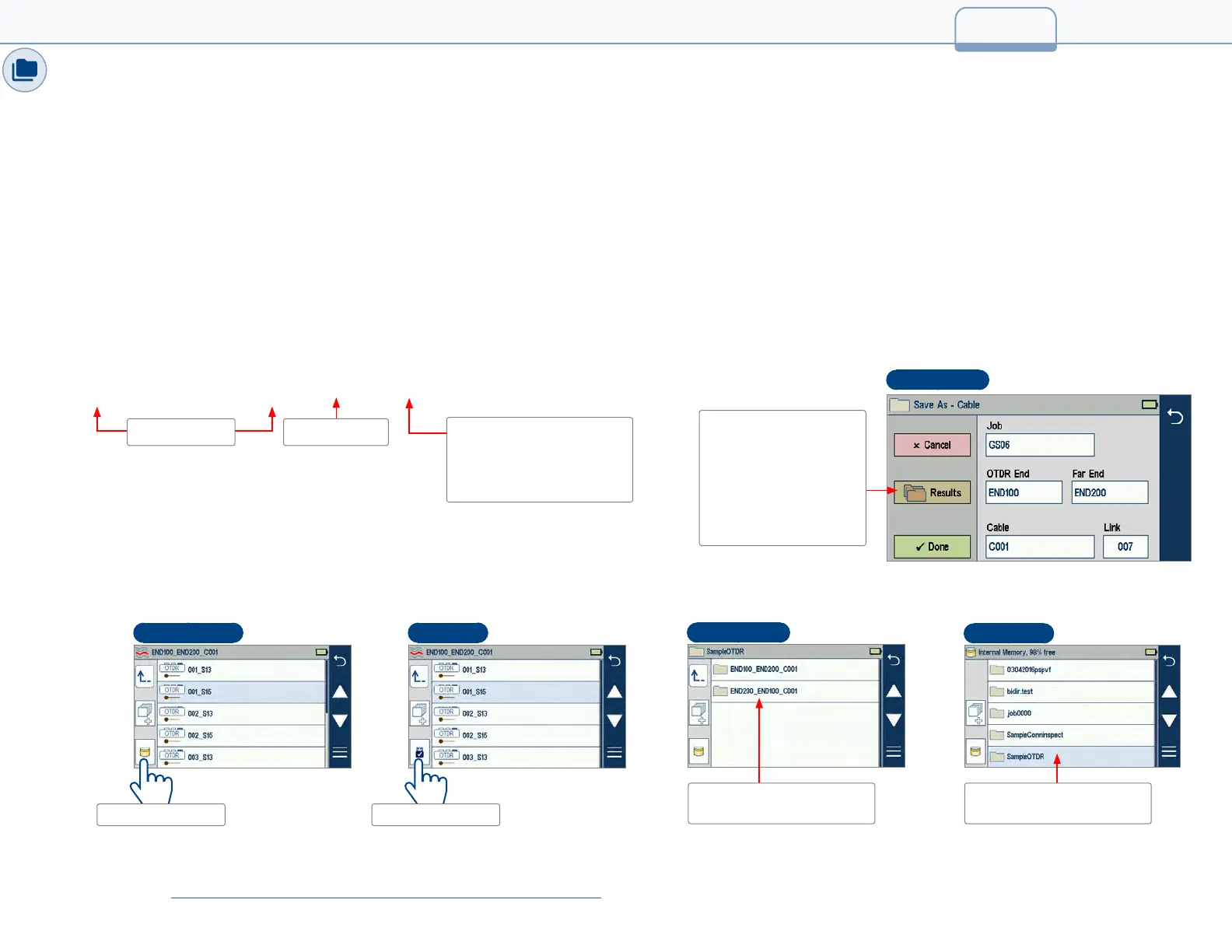

Save As Screen
Touch Results to
select Internal
memory or USB (if
present) and navigate
to the desired Job
and Cable folder
Internal memory USB memory
Cable folder within
SampleOTDR Job folder
SampleOTDR Job folder
OTDR test results name structure:
