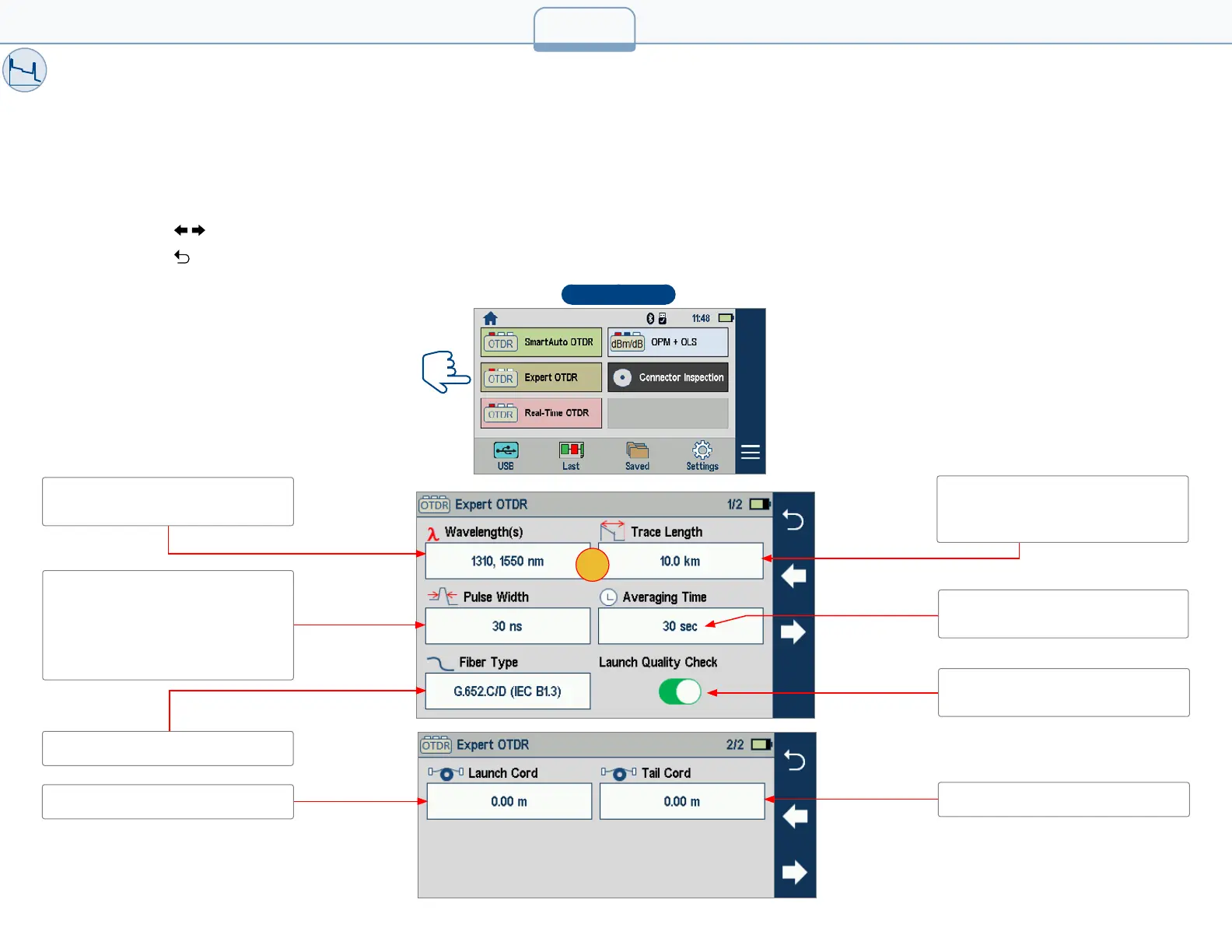

Expert OTDR Settings
The Expert OTDR mode is accessed from the Home screen by touching the Expert OTDR tab. While in the Expert OTDR screen:
• Touch the desired test setup parameter to display a sub-screen.
• While in a sub-screen, touch the desired eld to set the value.
• Touch to toggle between Expert settings screens.
• Touch to return to the Home screen.
Home Screen
26
BB
Set the Launch Cord length
Set the Tail Cord length
Touch to enable/disable Launch
Quality Check
Select G.65x or User
Select Pulse Width: 3, 5, 10, 20,
30, 50, 100, 200 ns.
Longer pulse width settings up
to 20 µs may be selected for
longer Trace Length settings.
Select Averaging Time: 5, 10,
30, 60, 90, 180 sec
Choose wavelength(s) at which
to test
Select Trace Length in Distance
units that are set in the General
Settings screen.
To Next Page
