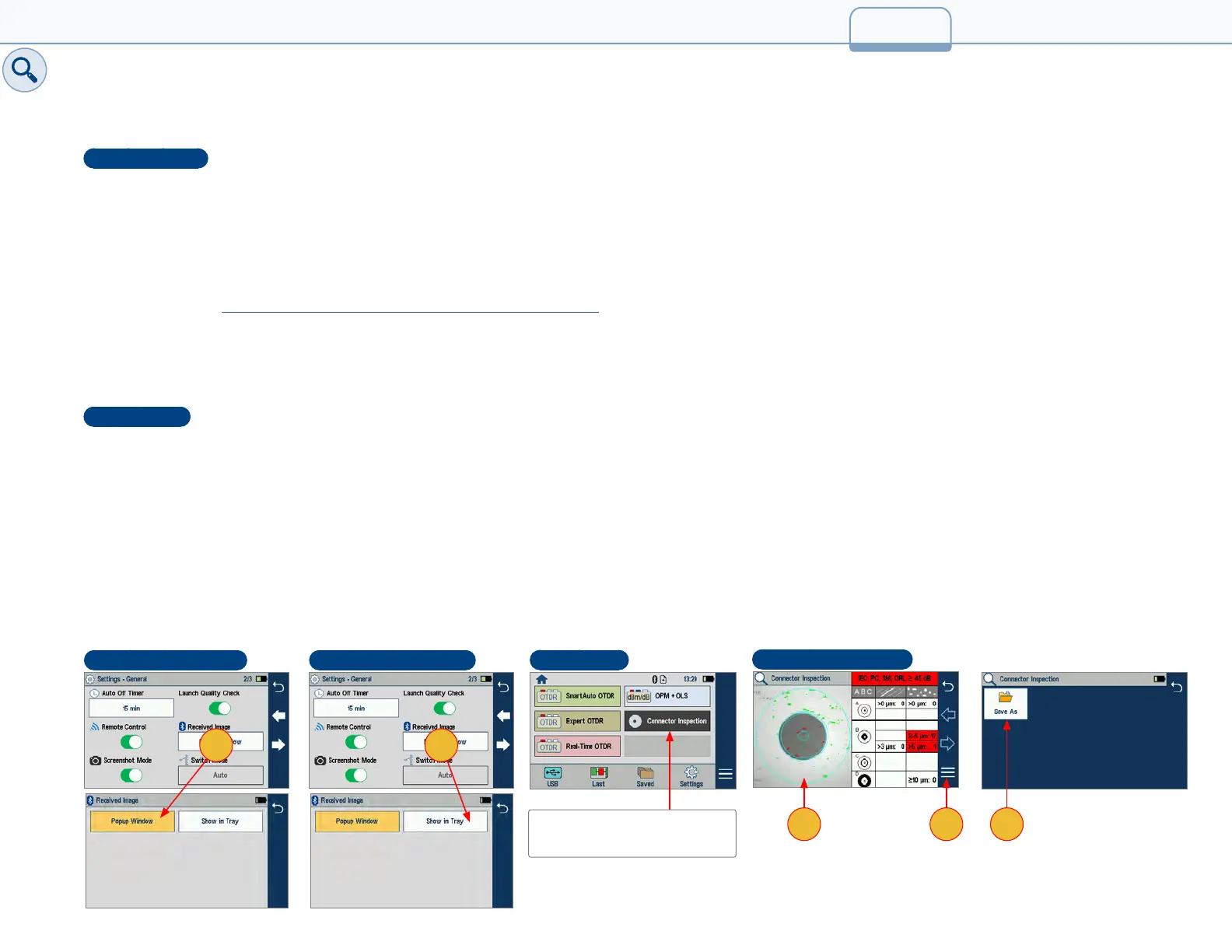

Inspecting Optical Connectors
Once FlexScan is paired to FOCIS Flex with Bluetooth enabled on both units, perform the following steps.
On FOCIS Flex:
• If testing an optical ber connector, slide the ferrule of the optical ber into the adapter tip installed on the FOCIS Flex inspection port.
Use caution not to contaminate the end-face of the ber connector.
• If testing an optical ber connector mounted in a bulkhead adapter, slide the adapter tip into the bulkhead adapter.
• You will see a Live ber-end image appear on the FOCIS Flex display.
• Press the Capture button to auto-focus, capture, analyze and display the connector end-face image.
(Refer to section “FOCIS Flex Inspection Probe Overview” on page 31).
• Once captured, the ber end-face image is analyzed by the FOCIS Flex.
• Once analysis is done, inspection results will appear on the FOCIS Flex display.
• Simultaneously, FOCIS Flex will send results to the FlexScan paired to it.
On FlexScan:
1. If the Received Image option is set to Popup Window in General Settings, inspection results received from FOCIS Flex will be immediately
displayed on FlexScan screen even if Connector Inspection mode is not enabled in the Home Screen
2. If the Received Image option is set to Show in Tray in General Settings, inspection results will only be displayed when Connector
Inspection mode is enabled in the Home Screen.
3. Once displayed, view image and results on FlexScan.
4. Inspection results can be stored in FOCIS Flex or FlexScan.
5. To save results in FlexScan, select Menu
6. Next, select Save As to name and save inspection image and Pass/Fail results.
General Settings Screen General Settings Screen
6.2_Inspecting Connectors
33
Home Screen
Inspection Mode Screen
53 6
1 2
Enable/disable Connector
Inspection Mode
To Next Page
