Real-Time OTDR

Real-Time OTDR Settings

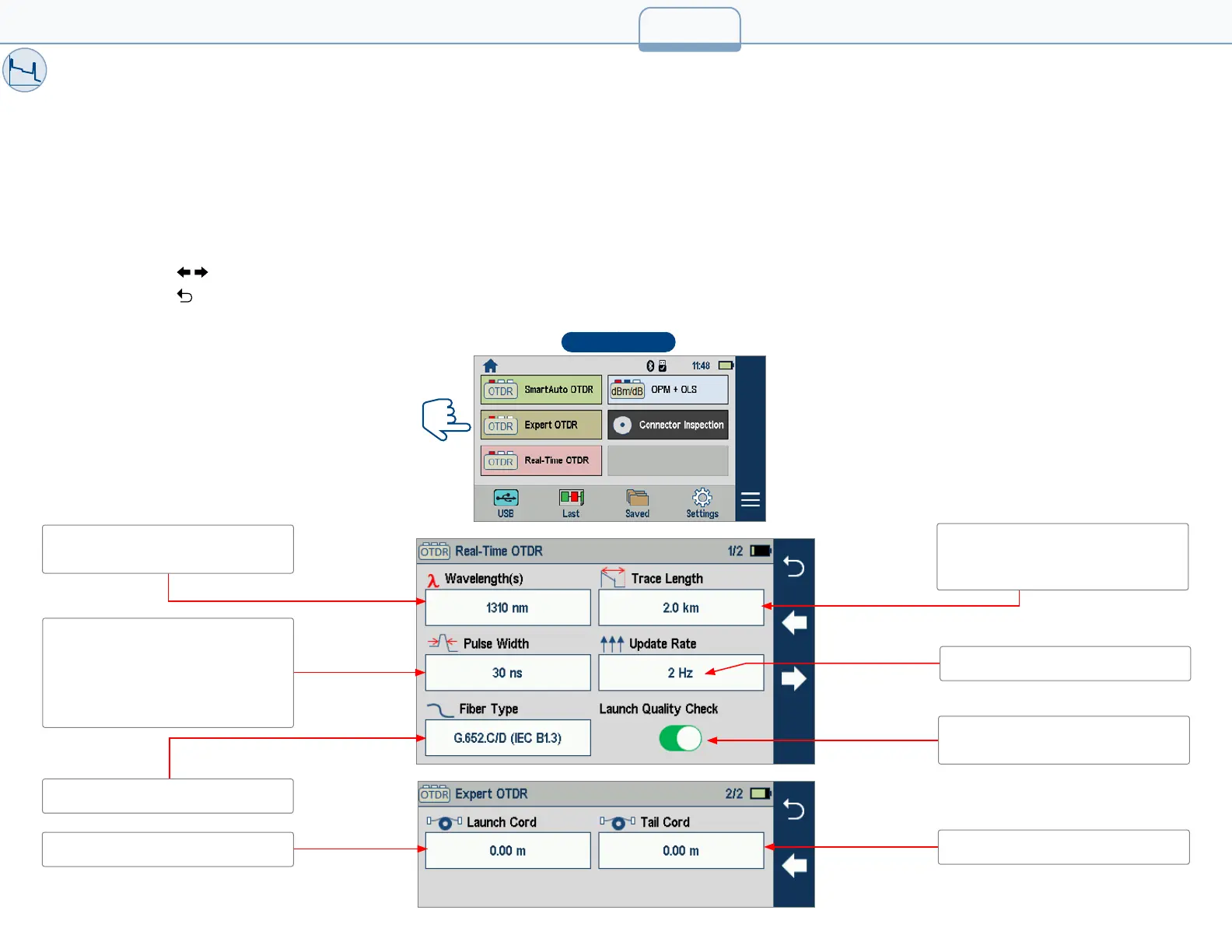

The Real-Time OTDR mode is accessed from the Home screen by touching the Real-Time OTDR tab. While in the Real-Time OTDR screen:

• Touch the desired test setup parameter to display a sub-screen.

• While in a sub-screen, touch the desired eld to set the value.

• Touch to toggle between Expert settings screens.

• Touch to return to the Home screen.

Home Screen

Select Trace Length in Distance

units that are set in the General

Settings screen.

Touch to enable/disable Launch

Quality Check

Select Update Rate: 1, 2, 4 Hz

Set the Tail Cord length

Choose wavelength at which to

test

Select Pulse Width: 10, 20, 30,

50, 100, 200 ns.

Longer pulse width settings up

to 20 µs may be selected for

longer Trace Length settings.

Select G.65x or User

Set the Launch Cord length

5_Real-Time

O verview

Settings

SmartAuto

Expert

Real-Time

OLS/OPM

Inspection

Results

Reports
