AFL FlexScan FS200 OTDR User Manual

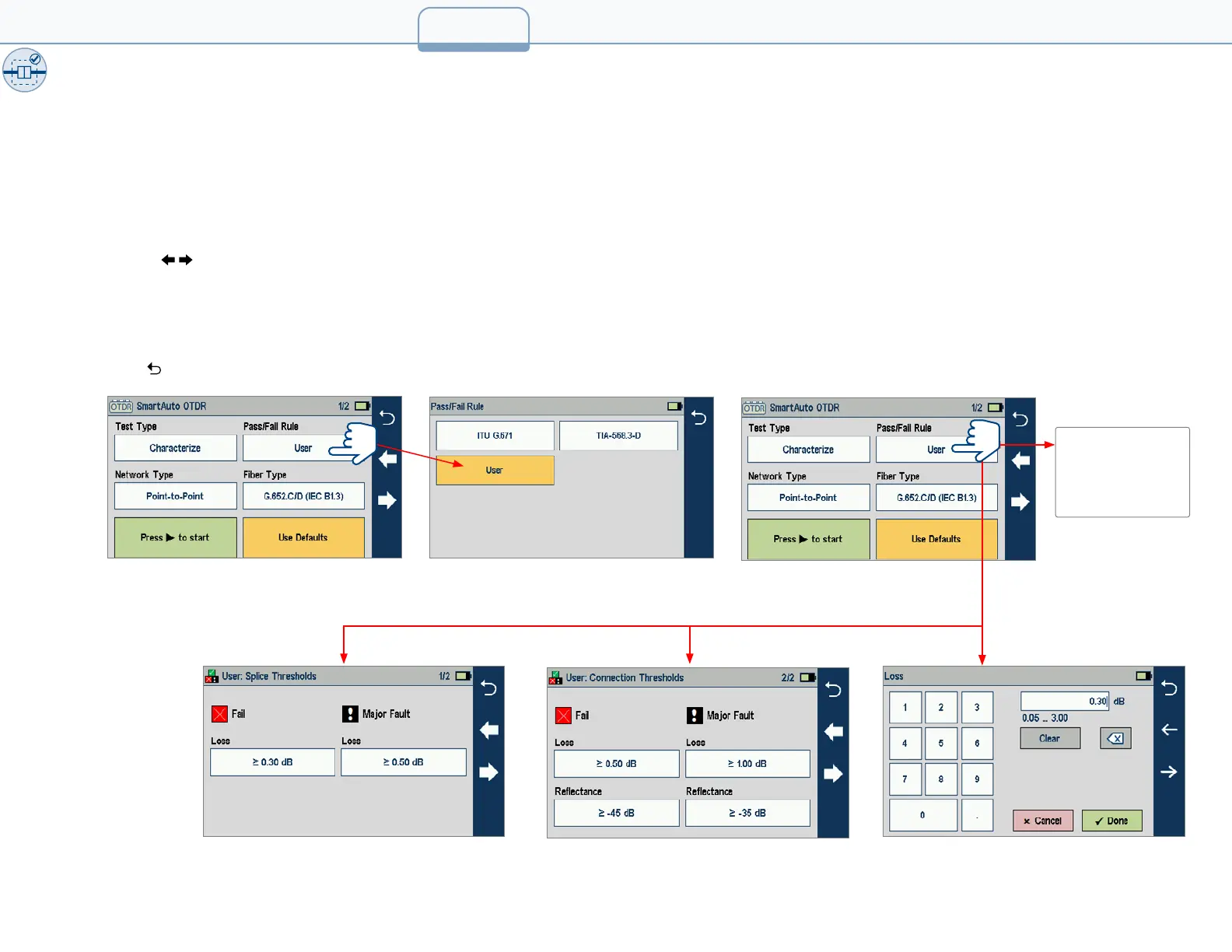

To View and Edit User Pass/Fail Rule Settings
• While in the SmartAuto Settings screen, make sure the User Rule label is displayed in the Pass/Fail Rule eld.
– If not, touch the Pass/Fail Rule eld to display the Rules menu and touch the User option to select.
• When back in the SmartAuto Settings screen, touch and hold the displayed User Rule to open one of the settings screen:
– Splice, Connector, or Splitter Pass/Fail thresholds will be displayed.
– Touch keys to toggle between screens.
– Touch the desired threshold eld (e.g. Fail: Loss) to display its Editor screen.
– Edit the threshold value using on-screen controls.
– Touch Done to save changes and return to the Thresholds screen.
• Touch to return to the SmartAuto Settings screen.
17
Touch and
hold to open
additional
settings screen
O verview
Settings
SmartAuto
Expert
Real-Time
OLS/OPM
Inspection
Results
Reports
