SmartAuto
®
OTDR with FleXpress
®
and LinkMap
®
Display
Using Touchscreen Controls

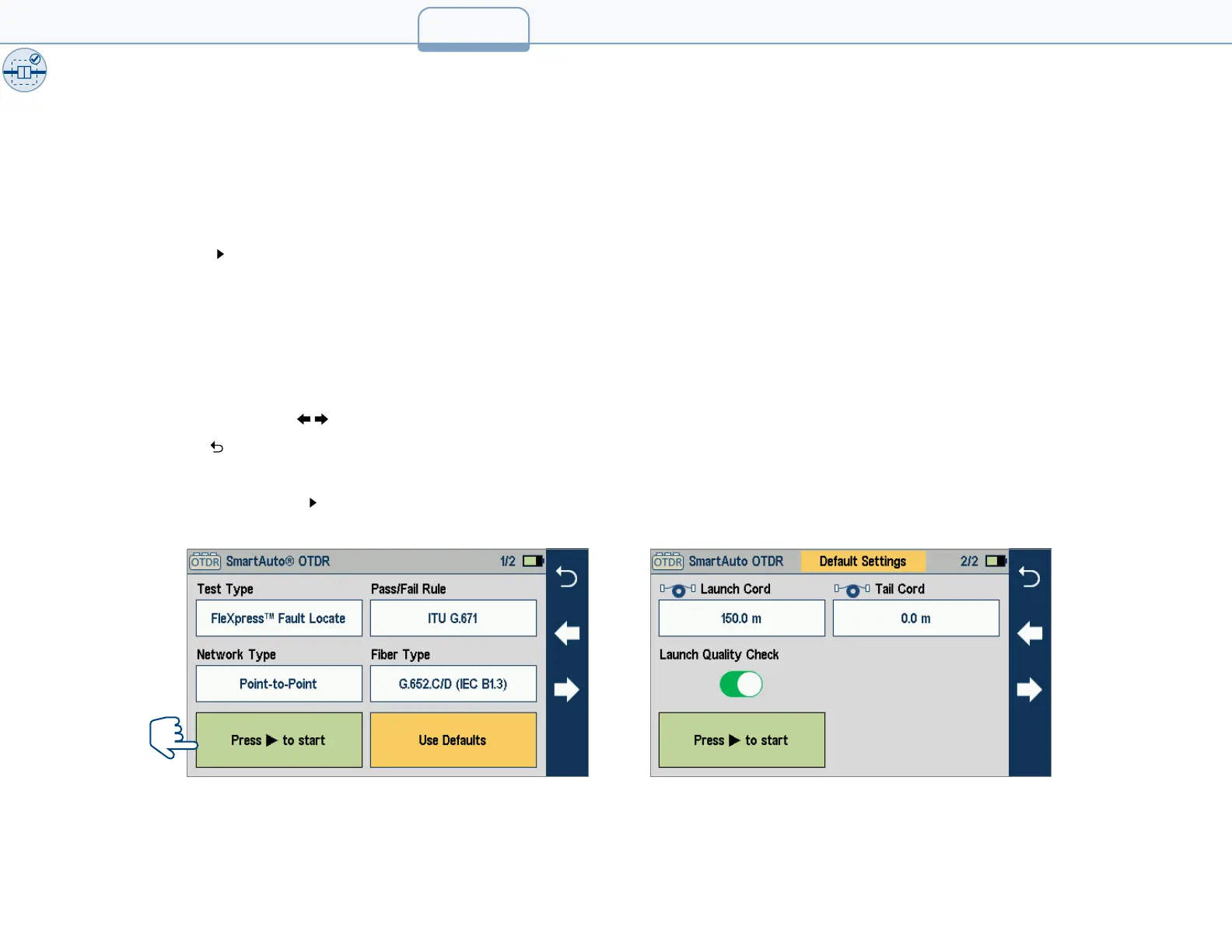

While in the SmartAuto OTDR setup screen:
If no setting changes required:
• Touch ‘Press to start’ to initiate testing.
Notes:
1. Characterize mode: Standard multi-pulse acquisition.
2. FleXpress mode (FS200-300/303/304 only): Fast Test mode for Point-to-Point networks only.
If setting changes required:
• Touch the desired setting eld/tab (e.g. Test Type) to display a sub-menu (where applicable).
• Touch left/right arrows to navigate to next/previous screen (where applicable).
• Touch Back to return to the previous menu.
• Touch Use Defaults (if displayed) to reset settings to the factory defaults as needed.
• When done, touch ‘Press to start’ to initiate testing.
