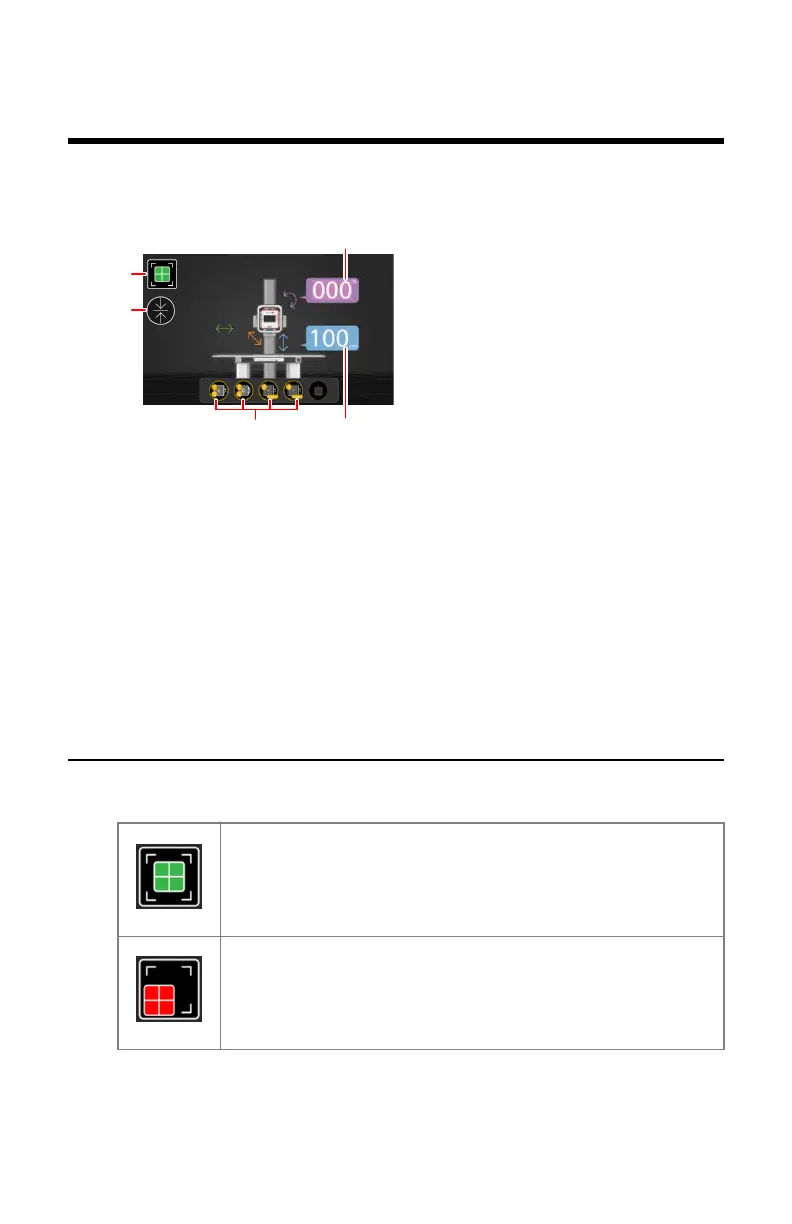

Tube head display
The tube head display shows the positioning parameters and status
information.
1.
Readout value of X-ray tube angle (alpha)
2.
Readout value of source image distance (SID)
3.
Icon displayed if automatic centering and position tracking is active
4.
Alignment of X-ray tube and DR detector bucky
5.
Bucky status
Figure 53: Positioning parameters for table exposures
While pressing and holding a positioning button, a corresponding icon is
displayed on the tube head display.
Status information on the tube head display
Table 26: X-ray tube centering
The X-ray tube and the DR detector are aligned.
The X-ray tube and the DR detector are not aligned. It is not
possible to perform an exposure.
Valory (system with floor mounted column) | Tube head display | 125
0426A EN 20220804 1858
