System overview
Valory is a digital radiography X-ray system.
Valory is a modular system. This manual describes the system with the X-ray
tube head on a floor mounted column.
ai16050197339_2009-002 6396_DR599 THU Control panel HR.pdf 1 10/11/2020 15:48
ai16050197339_2009-002 6396_DR599 THU Control panel HR.pdf 1 10/11/2020 15:48

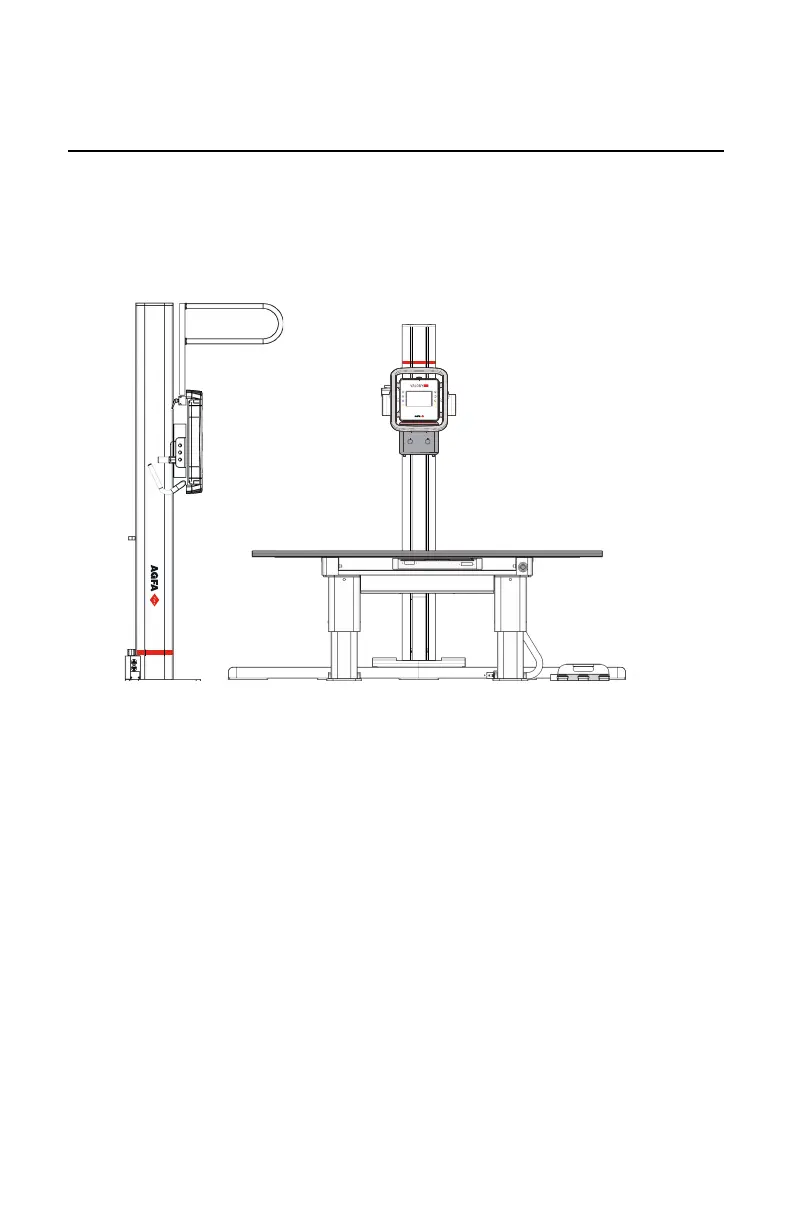

Figure 1: Valory (system with floor mounted column)
The complete system consists of the following components:
• Floor mounted column with X-ray tube and tube head display
• Manual collimator
• Radiographic table with motorized movement and a bucky to insert a DR
Detector
• Radiographic wall stand with manual movement and a bucky to insert a
DR Detector
• X-ray generator
• MUSICA Acquisition workstation (NX workstation)
• Automatic Exposure Control (AEC)
• Dose Area Product Meter (DAP, optional)
This configuration supports following functionality:
• automatic centering of the radiographic table
• bucky of the radiographic table tracks the longitudinal displacement of
the X-ray tube
