Mounting the compression belt
The compression belt provides additional fixation for the patient on the table.
It can be adjusted to patient thickness.
1. Slide both ends of the compression belt in the rails of the tabletop and
wrap the compression belt around the patient.

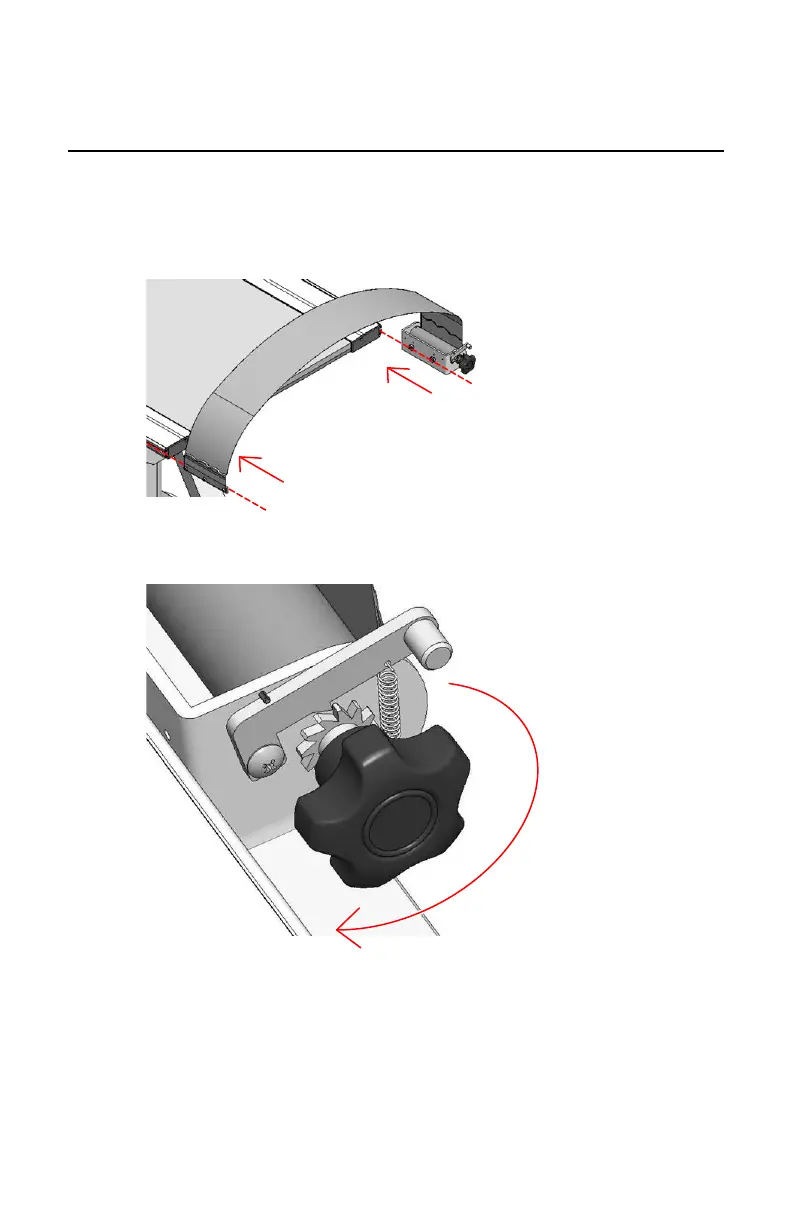

Figure 75: Rails at the side of the tabletop
2. Tighten the hand screw to apply compression force to the patient.
Figure 76: Hand screw for tightening the compression belt
3. Pull the release lever and turn the hand screw counterclockwise to release
the pressure.
142 | Valory (system with floor mounted column) | Radiographic Table Accessories
0426A EN 20220804 1858
