Radiographic wall stand
The radiographic wall stand is used for positioning of patients standing
upright or sitting towards the bucky for exposure.
1.
Lateral arm rest
2.
Bucky unit
3.
Indicators for the position of the AEC cells
4.
Button to release the manual vertical movement

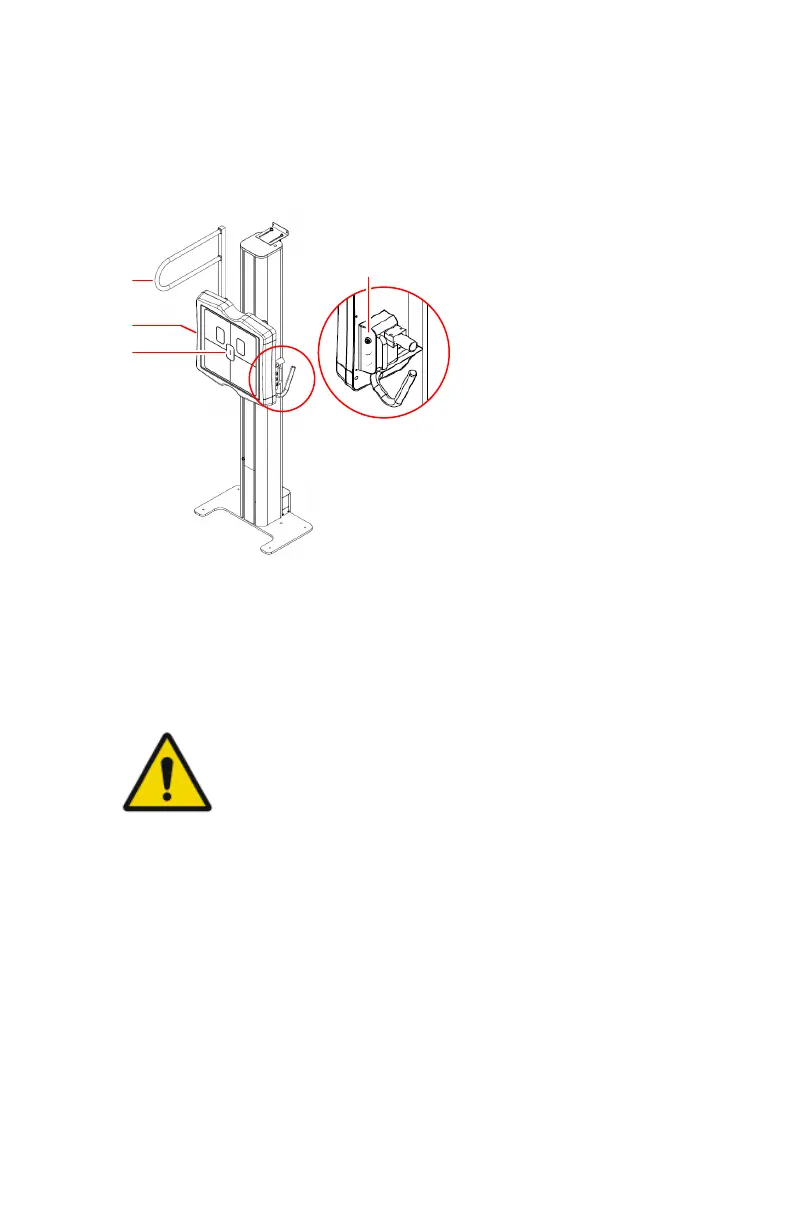

Figure 4: Radiographic wall stand with manual movement
CAUTION:
The format indications on the front of the bucky unit show the
format and position of the DR detector. Take into account that
the actual area for imaging is smaller than indicated. The image
of the exposed object is slightly magnified because there is a
distance between the DR detector and the front of the bucky
unit. The sensitive area of the DR detector may be slightly
smaller than the indicated area. Check the technical data of the
DR detector for exact values.
Related Links
Positioning the Radiographic Wall Stand on page 144
Radiographic Wall Stand Accessories on page 145
Wall stand technical data on page 190
