AGFA Valory - Radiographic Table

Radiographic table
The radiographic table is used for positioning of the patient lying or sitting
over the detector in the bucky for exposure.
The radiographic table supports the patient and the detector for free
exposure.

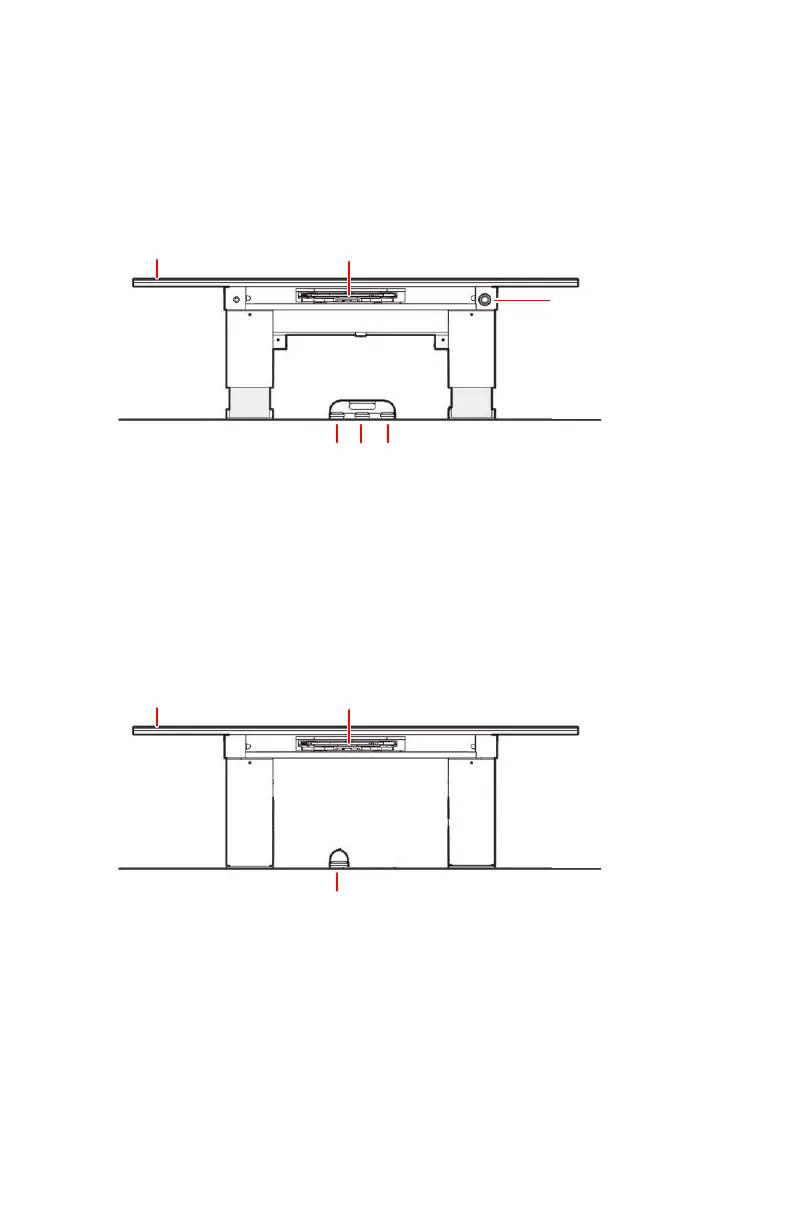

1 2
6
3 4 5
1.
Floating tabletop
2.
Bucky
3.
Foot pedal to lower the table height
4.
Foot pedal to release the brake for the floating tabletop
5.
Foot pedal to raise the table height
6.
Emergency stop button
Figure 2: Radiographic table with motorized movement
1 2
3
1.
Floating tabletop
2.
Bucky
3.
Foot pedal to release the brake for the floating tabletop
Figure 3: Radiographic table with fixed height
Related Links
Positioning the Radiographic Table on page 135
Radiographic Table Accessories on page 139
Radiographic Table Technical Data on page 189
