Mounting the lateral arm rest
CAUTION:
The lateral arm rest can bear up to 20 kg. It is not intended to
hold the whole weight of a patient.
Take care that the lateral arm rest does not collide with the ceiling when
moving the bucky upward.

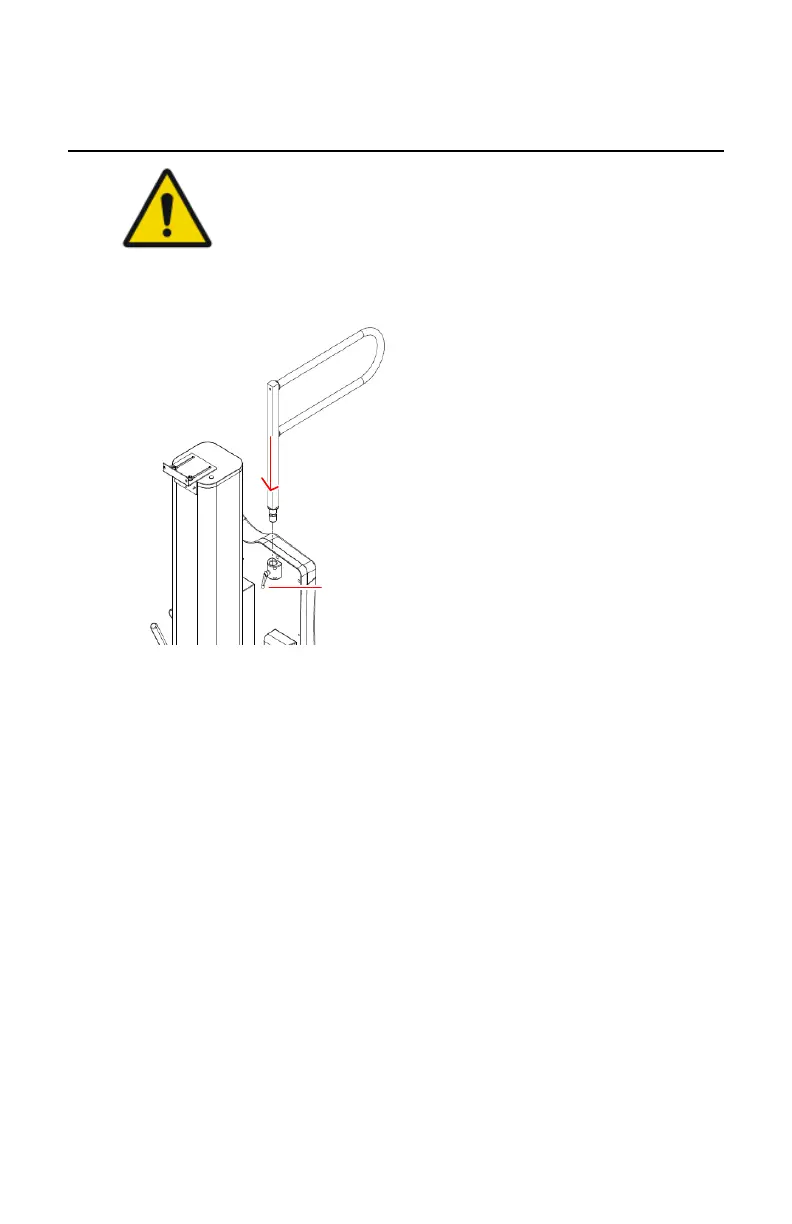

Figure 78: Knob for locking the lateral arm rest
To mount and position the lateral arm rest:
1. Insert the lateral arm rest in the mounting slot at the rear side of the bucky
frame.
2. Turn the lever clockwise to lock the lateral arm rest.
