If the X-ray tube is aimed at a position outside of the travel range of the
bucky, an error is displayed and the position of the X-ray tube must be
adjusted.

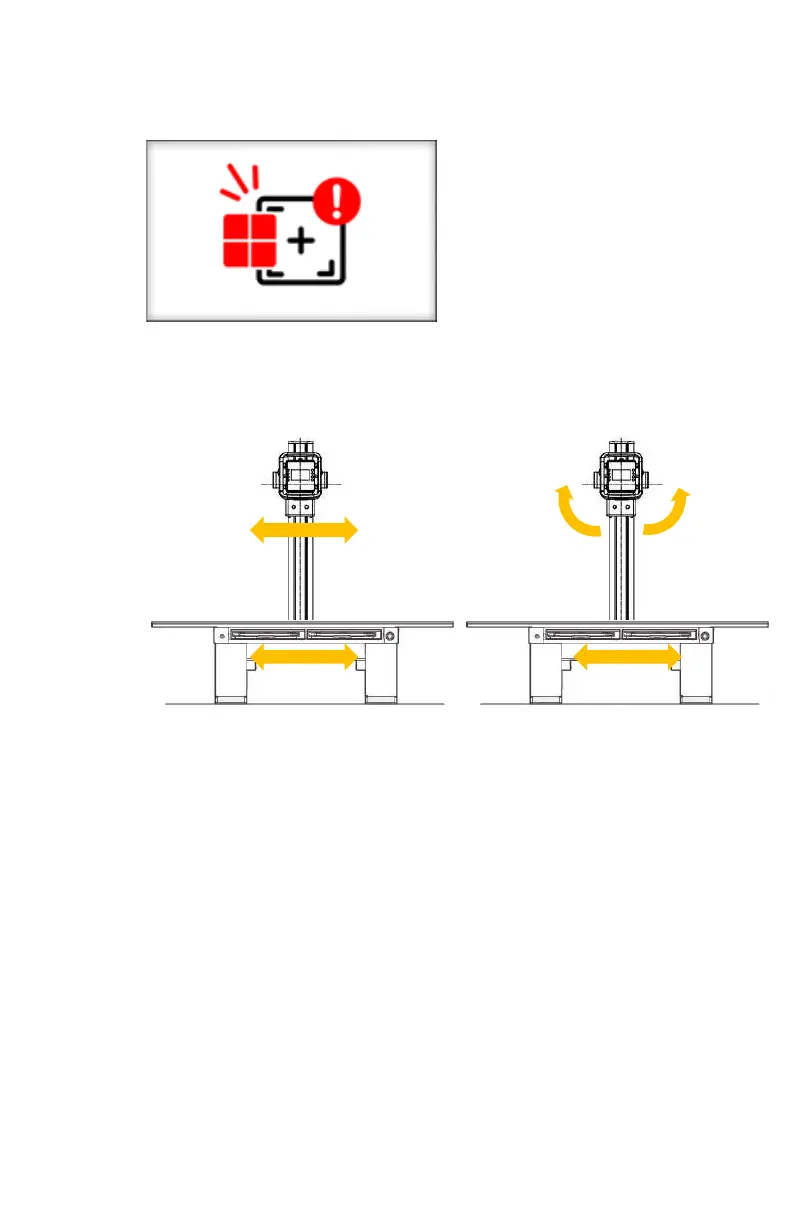

Figure 60: X-ray tube is aiming at a position outside of the travel range of
the bucky
5. Adjust the position of the X-ray tube head.
The DR bucky is moving left or right accordingly.
Figure 61: DR bucky in the table tracks the X-ray tube head
6. Disable tracking by pressing the position tracking button again.
Related Links
X-ray tube head unit on page 20
132 | Valory (system with floor mounted column) | Positioning the X-Ray Tube
0426A EN 20220804 1858
