Minimum height above the floor 200 cm.
4.
Dose meter
5.
Protective device
6.
Wall
7.
DR Detector or cassette
8.
Significant zone of occupancy at the right side of the radiographic wall
stand
9.
Significant zone of occupancy at the left side of the radiographic wall
stand
Figure 21: Significant zones of occupancy at the radiographic wall stand
Stray radiation

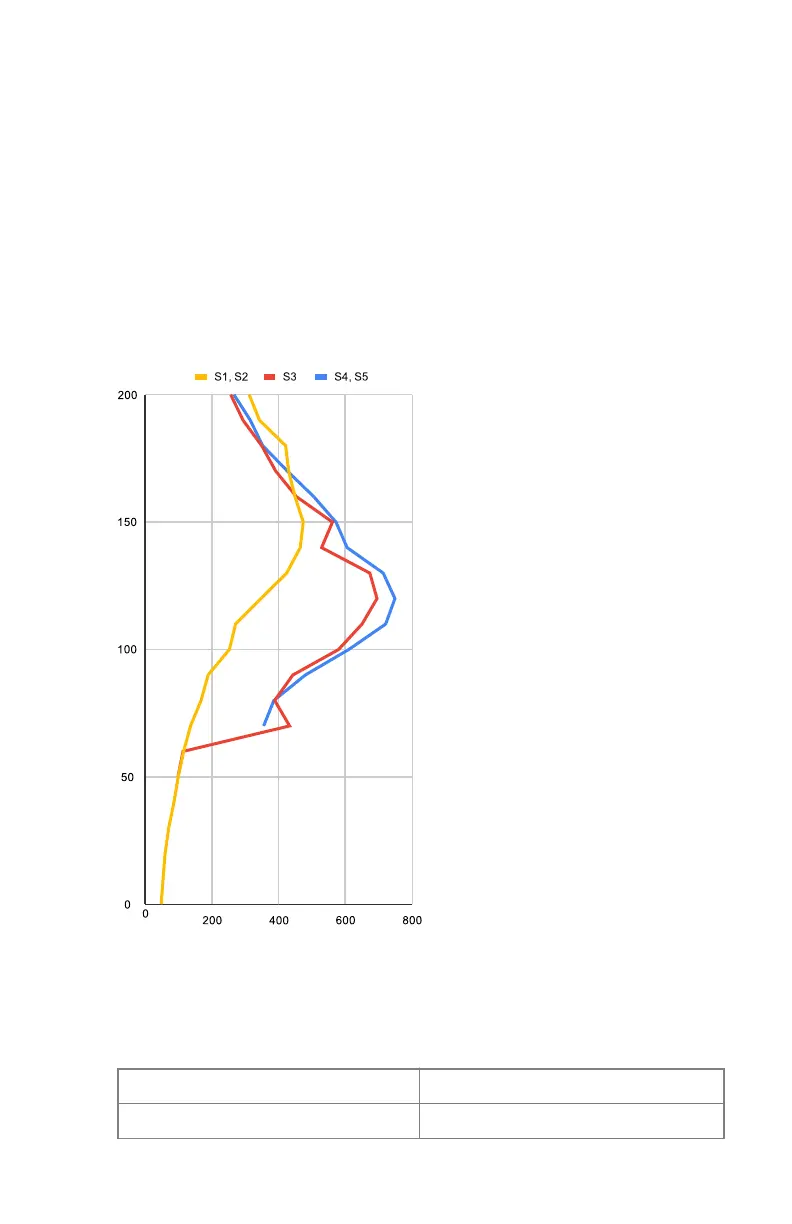

Figure 22: Measurement of stray radiation in zones of occupancy for height
range 0 to 200 cm from the floor
Table 2: Conditions for measuring stray radiation values represented in the
illustrations
Object 25 cm x 25 cm x 15 cm water
SID 100 cm
Valory (system with floor mounted column) | Introduction | 39
0426A EN 20220804 1858
