1290 Infinity Quaternary Pump User Manual 133
Maintenance
9
Replacing the Pressure Sensor
5

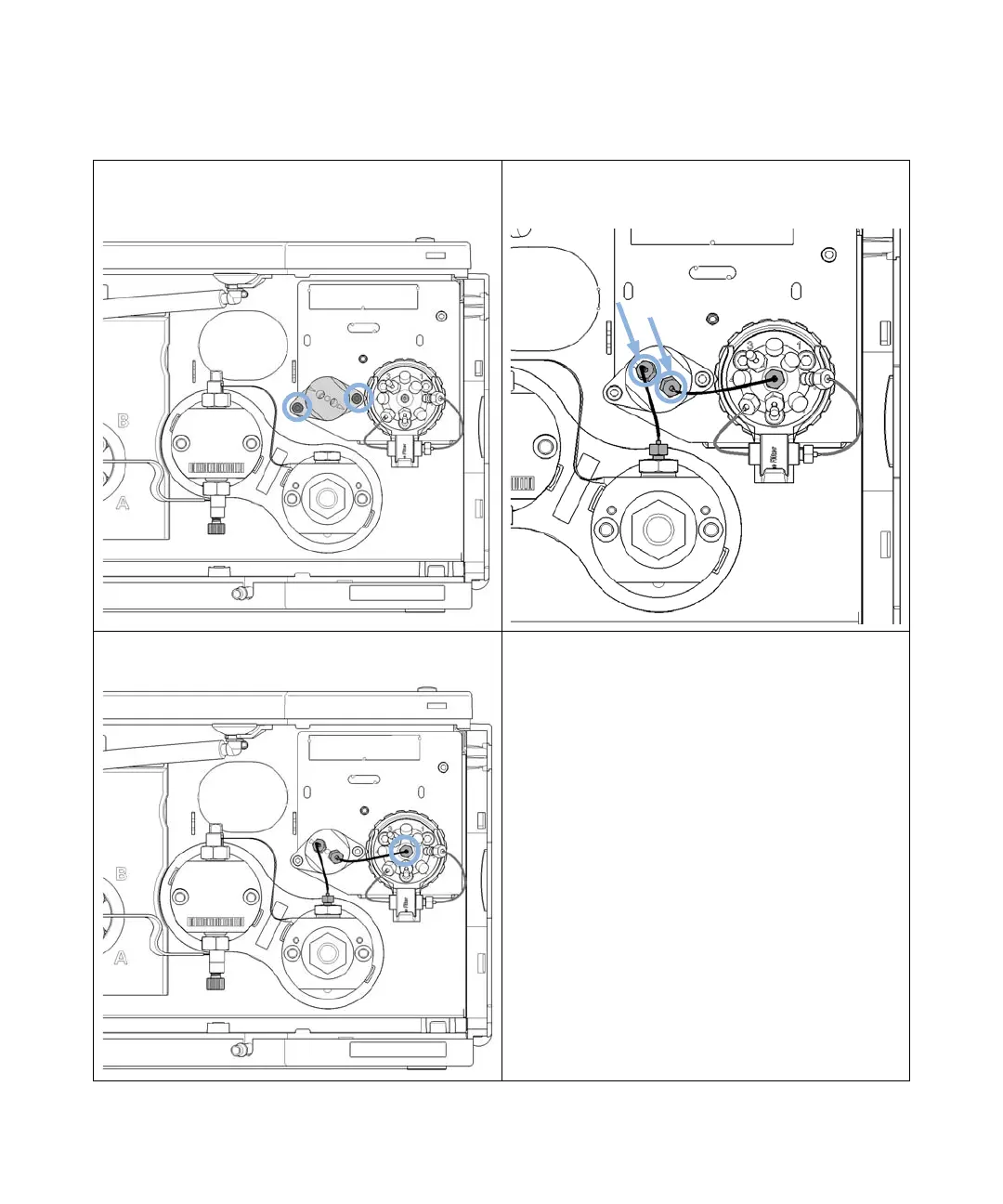

Fix the pressure sensor to the instrument chassis. 6 Connect the capillary from the pump head outlet to the
pressure sensor inlet. Two arrow signs on the pressure
sensor indicate the flow direction.
7 If applicable, connect the outlet of the pressure sensor to
the central port of the Multi Purpose Valve.
