58 1290 Infinity Quaternary Pump User Manual
4 Using the Pump
Setting up the Pump with the Instrument Control Interface
The Pump User Interface (Dashboard Panel)
Module Graphic

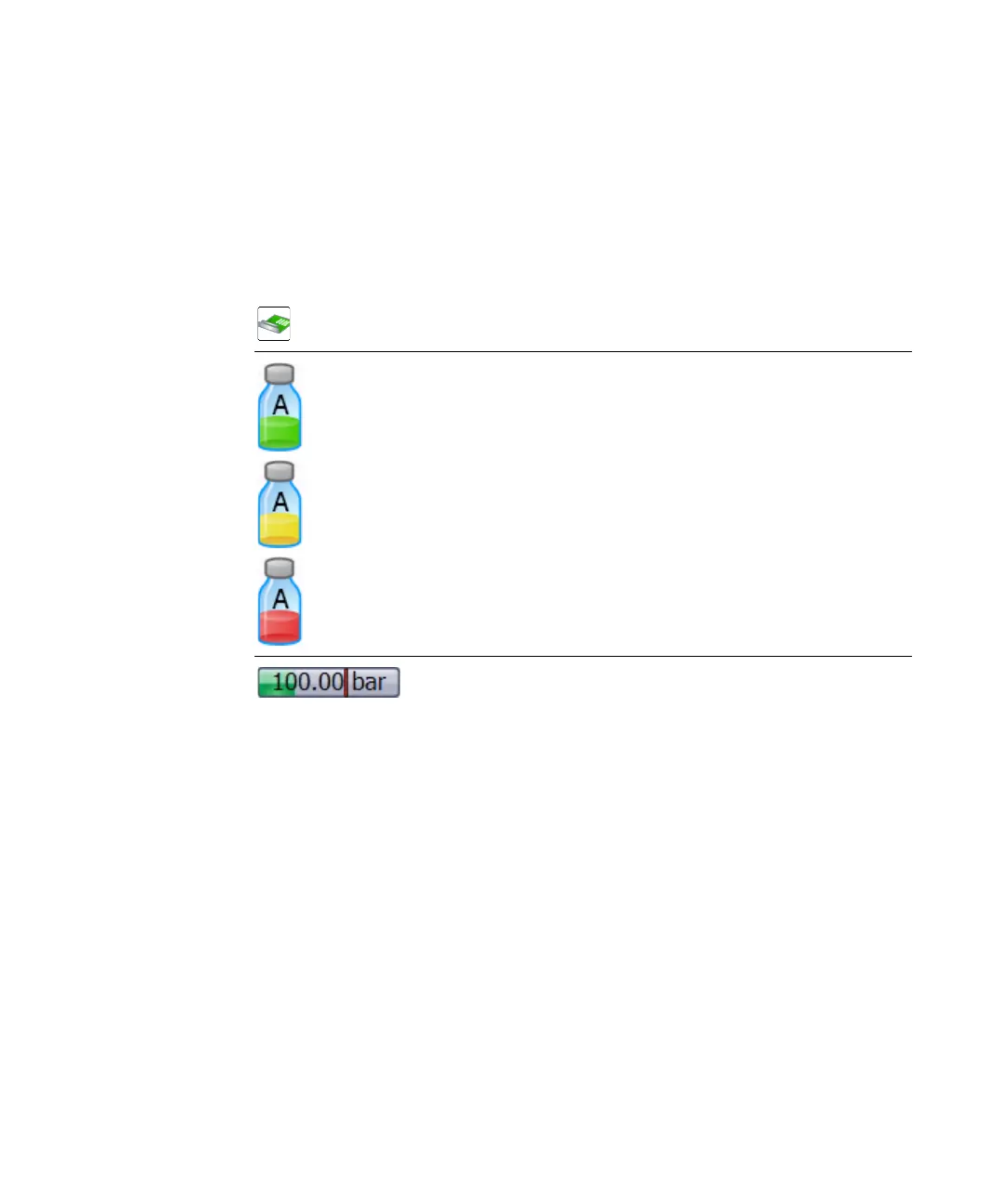

The items in the pump graphic have the following meaning and function:
The current solvent flow rate (in mL/min) is displayed above the pressure
display.
Indicates that an External Contacts board is installed.
The level of solvent in the bottle is denoted by the green area;
when the solvent level falls below the specified volume, the
area turns yellow; when the bottle is empty, the area turns red.
Clicking on the solvent bottle displays the Bottle Fillings
dialog box. The tooltip for the bottle shows the solvent name.
The pressure setpoints. The red line shows the current
maximum pressure limit; the green area shows the current
pressure (also shown as text).
