270 1290 Infinity Quaternary Pump User Manual
13 LAN Configuration
Link Configuration Selection
Link Configuration Selection
The LAN interface supports 10 or 100 Mbps operation in full- or
half- duplex modes. In most cases, full- duplex is supported when the
connecting network device - such as a network switch or hub - supports
IEEE 802.3u auto- negotiation specifications.
When connecting to network devices that do not support auto- negotiation,
the LAN interface will configure itself for 10- or 100- Mbps half- duplex
operation.
For example, when connected to a non- negotiating 10- Mbps hub, the LAN
interface will be automatically set to operate at 10- Mbps half- duplex.
If the module is not able to connect to the network through
auto- negotiation, you can manually set the link operating mode using link
configuration switches on the module.

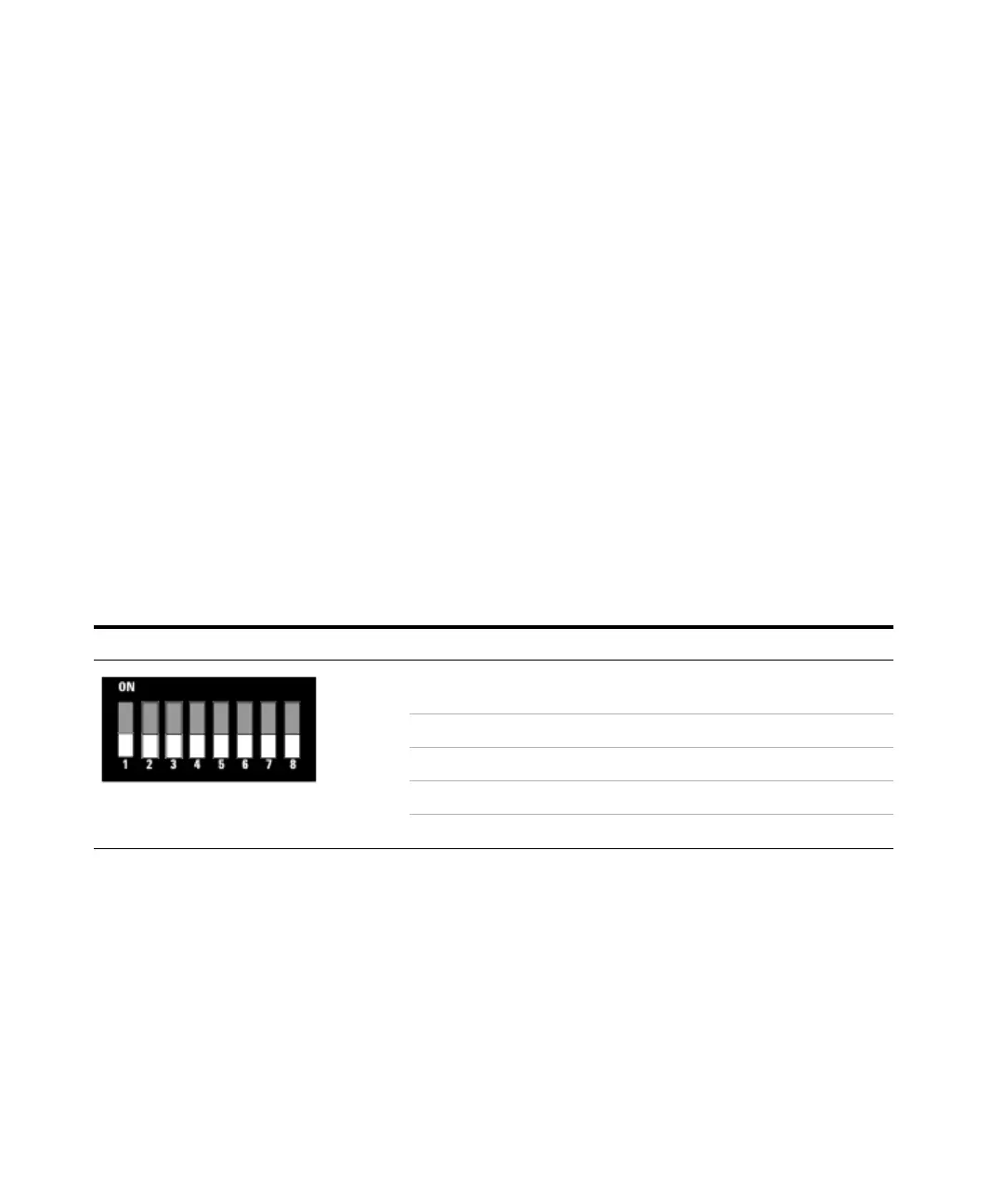

Tabl e 18 Link Configuration Switches
SW 3SW 4SW 5Link Configuration
OFF - - speed and duplex mode determined by
auto-negotiation
ON OFF OFF manually set to 10 Mbps, half-duplex
ON OFF ON manually set to 10 Mbps, full-duplex
ON ON OFF manually set to 100 Mbps, half-duplex
ON ON ON manually set to 100 Mbps, full-duplex
