230 1290 Infinity Quaternary Pump User Manual

11 Identifying Cables

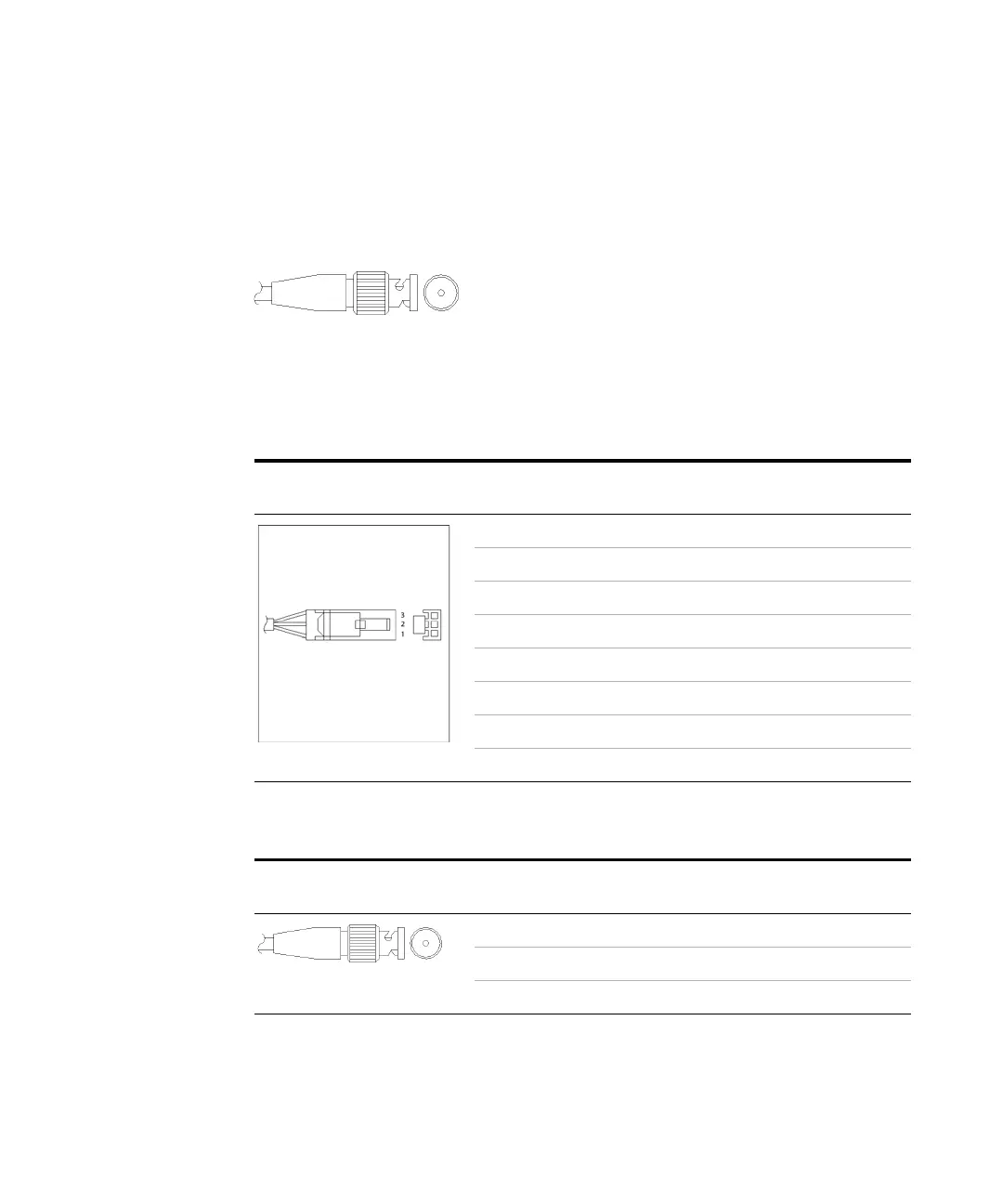

Analog cables

One end of these cables provides a BNC connector to be connected to

Agilent modules. The other end depends on the instrument to which

connection is being made.

Agilent Module to 3394/6 Integrators

Agilent Module to BNC Connector

p/n 35900-60750 Pin 3394/6 Pin Agilent

module

Signal Name

1 Not connected

2 Shield Analog -

3 Center Analog +

p/n 8120-1840 Pin BNC Pin Agilent

module

Signal Name

Shield Shield Analog -

Center Center Analog +
