246 1290 Infinity Quaternary Pump User Manual
12 Hardware Information
Electrical Connections
Rear View of the Module

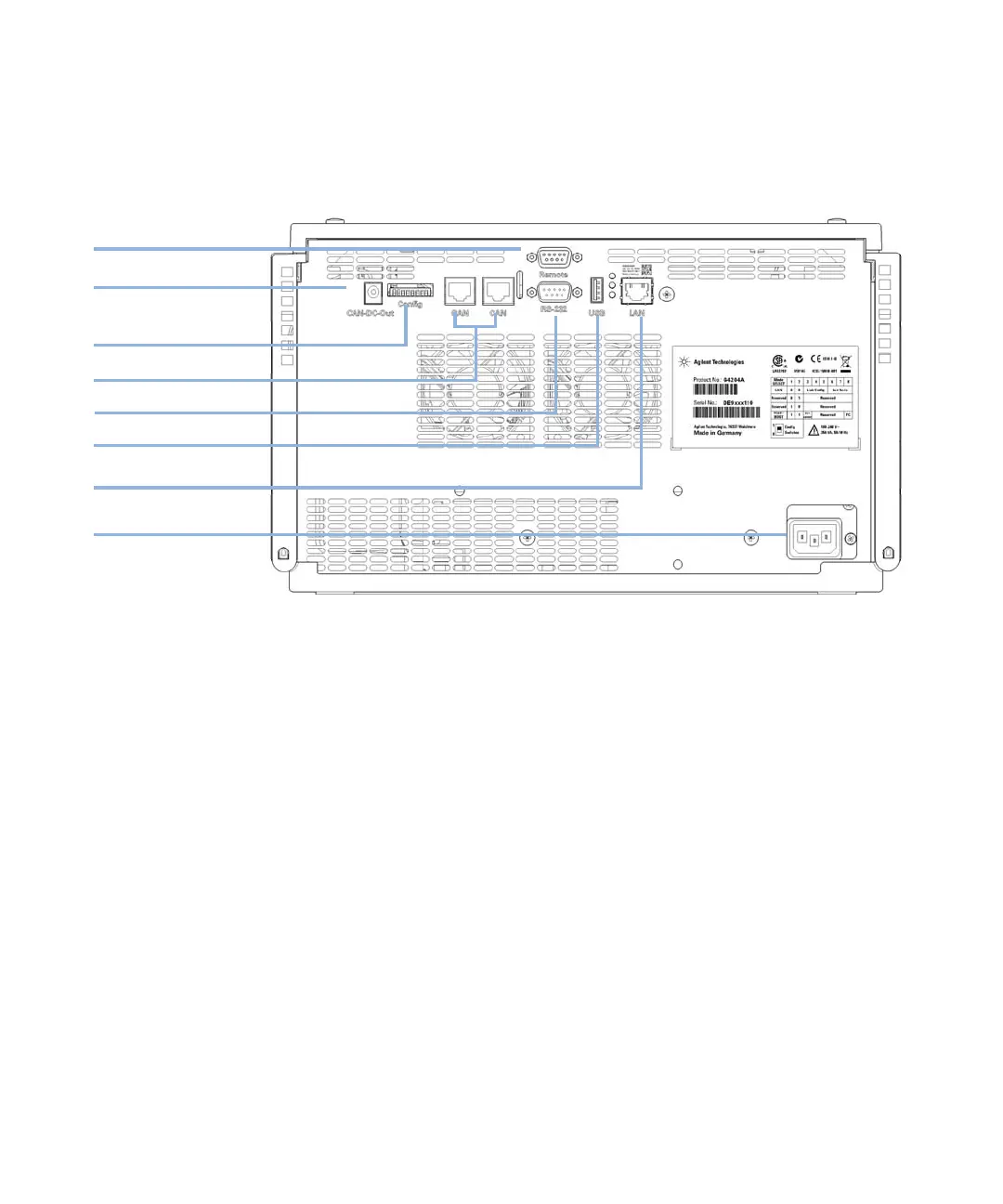

Figure 33 Rear of quaternary pump
APG-Remote
Power supply for
external CAN valves
Configuration switch
CAN-Bus
RS232
USB port
LAN
Power plug
