Installing the Valve Rail Kit
Installing the Valve Rail Kit

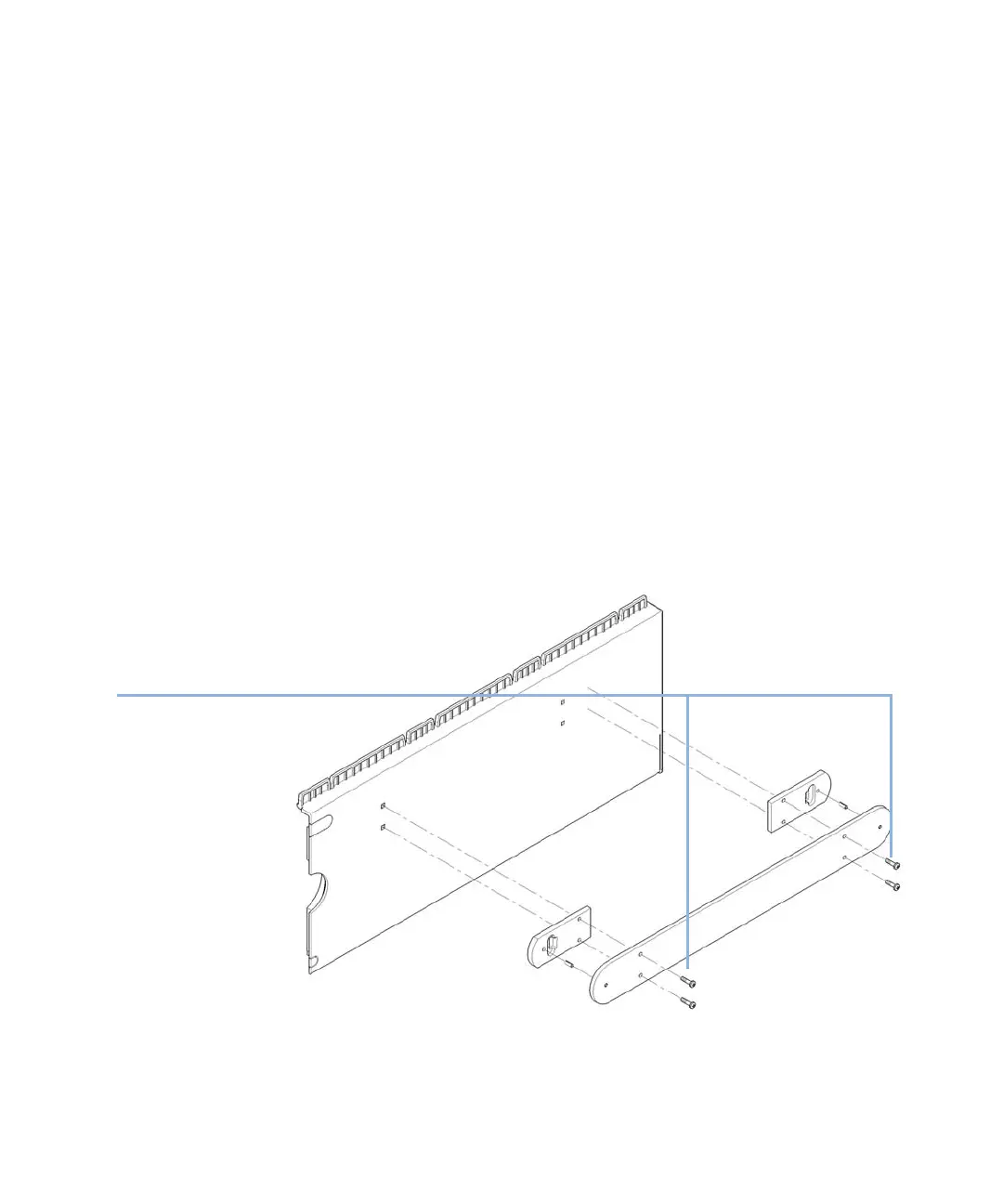

1 The valve rail is fixed to the pump cover by 4 screws. The position of
the lower screws is marked on the module cover. First tighten these
screws, and then tighten the upper screws.
When This rail is needed for the installation of external valves.
Tools required Description
Pozidrive screwdriver #1
Parts required # p/n Description
1 5067-4634 Valve Rail Kit
