268 1290 Infinity Quaternary Pump User Manual
13 LAN Configuration
Dynamic Host Configuration Protocol (DHCP)
Setup (DHCP)
1 Note the MAC address of the LAN interface (provided with G1369C
LAN Interface Card or Main Board). This MAC address is on a label on
the card or at the rear of the main board, e.g. 0030d3177321.
On the Instant Pilot the MAC address can be found under Details in the
LAN section.

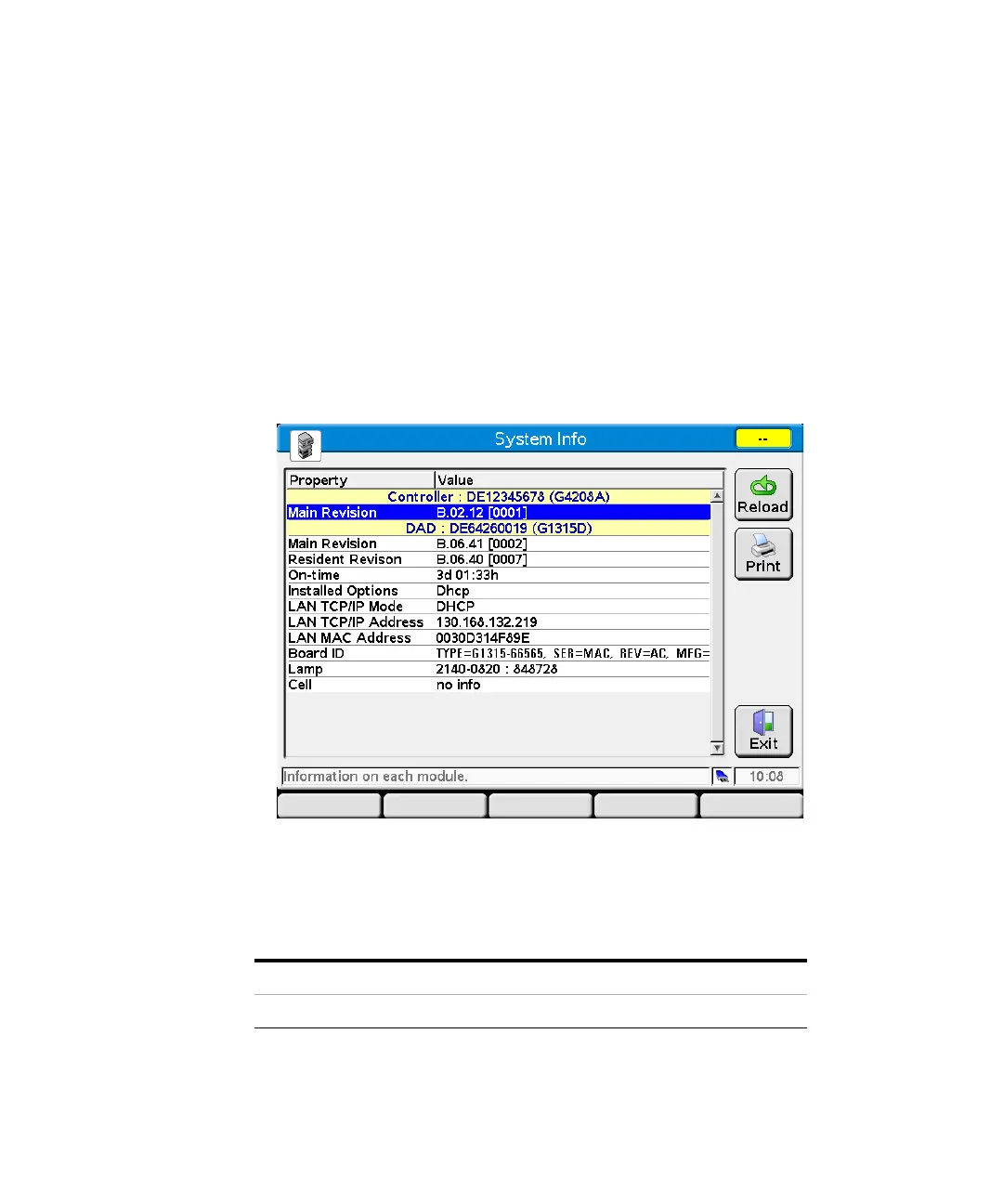

Figure 44 LAN Setting on Instant Pilot
2 Set the Configuration Switch to DHCP either on the G1369C LAN
Interface Card or the main board of above mentioned modules.
Software required The modules in the stack must have at least firmware from set A.06.34 and the above mentioned
modules B.06.40 or above (must from the same firmware set).
Tabl e 16 G1369C LAN Interface Card (configuration switch on the card)
SW 4 SW 5 SW 6 SW 7 SW 8 Initialization Mode
ON OFF OFF OFF OFF DHCP
