1290 Infinity Quaternary Pump User Manual 37
Installing the Module
3
Optimizing the Stack Configuration
Two Stack Configuration
In case the autosampler thermostat is added to the system, a two- stack
configuration is recommended, which places both heavy modules (1290
Infinity pump and thermostat) at the bottom of each stack and avoids
high stacks. Some users prefer the lower height of this arrangement even
without the autosampler thermostat. A slightly longer capillary is required
between the pump and autosampler. (See Figure 10 on page 37 and
Figure 11 on page 38).

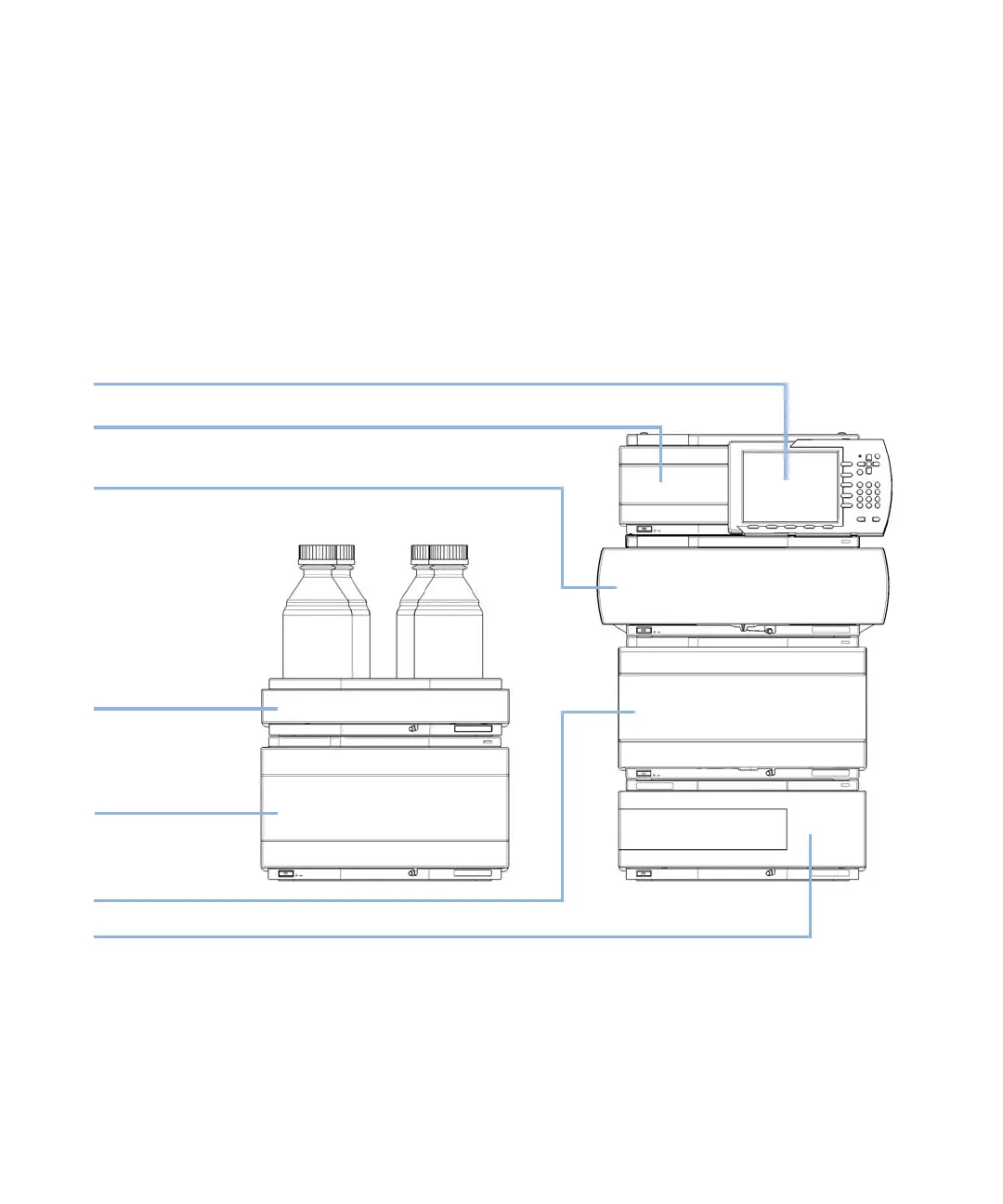

Figure 10 Recommended two stack configuration for 1290 Infinity with quaternary pump
(front view)
Instant Pilot
Detector
Column compartment
Solvent cabinet
Pump
Autosampler
Thermostat for the
ALS (optional)
