Pump Head Assembly Parts
Pump Head Assembly Parts

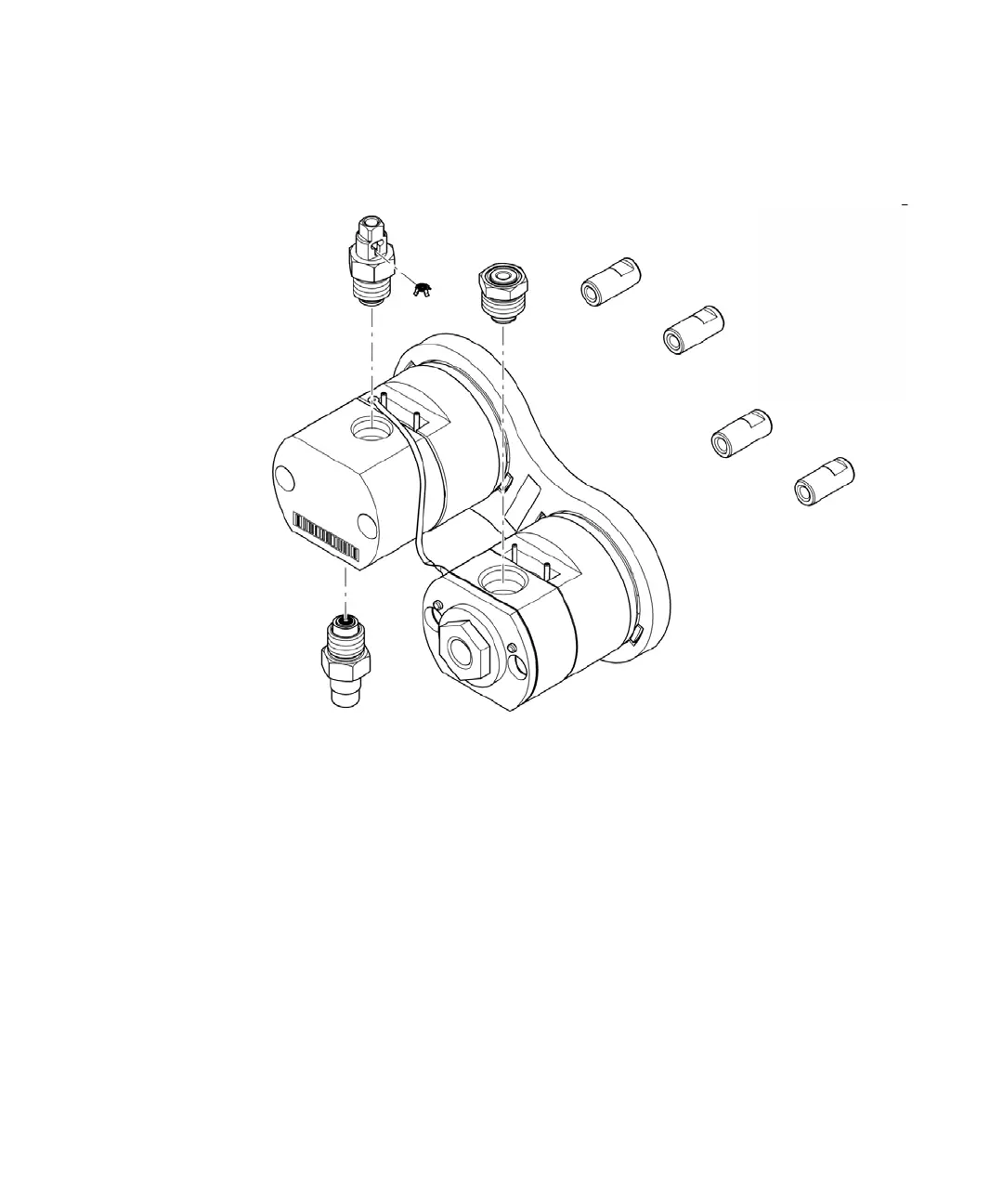

Figure 22 Pump head assembly parts
Item p/n Description
G4204-60200 1290 Infinity Quaternary Pump Head Assembly with Seal Wash
Option
G4204-60400 1290 Infinity Quaternary Pump Head Assembly without Seal Wash
Option
1 G4220-81013 Heat Exchanger (secondary pump head only)
2 G4220-40001 Link Plate
3 G4204-60022 Inlet Valve 1290 Infinity Quaternary Pump
4 G4220-60028 Outlet valve
(primary pump head)
5 G4220-20020 Internal gold seal for Outlet Valve
6 G4204-60004 Outlet filter 1290 Infinity Quaternary Pump
7 G4220-23704 (4x) Stay bolt
1
2
3
4
5
7
7
7
7
