1290 Infinity Quaternary Pump User Manual 193
Maintenance
9
Replacing Parts of the Inline Filter
5

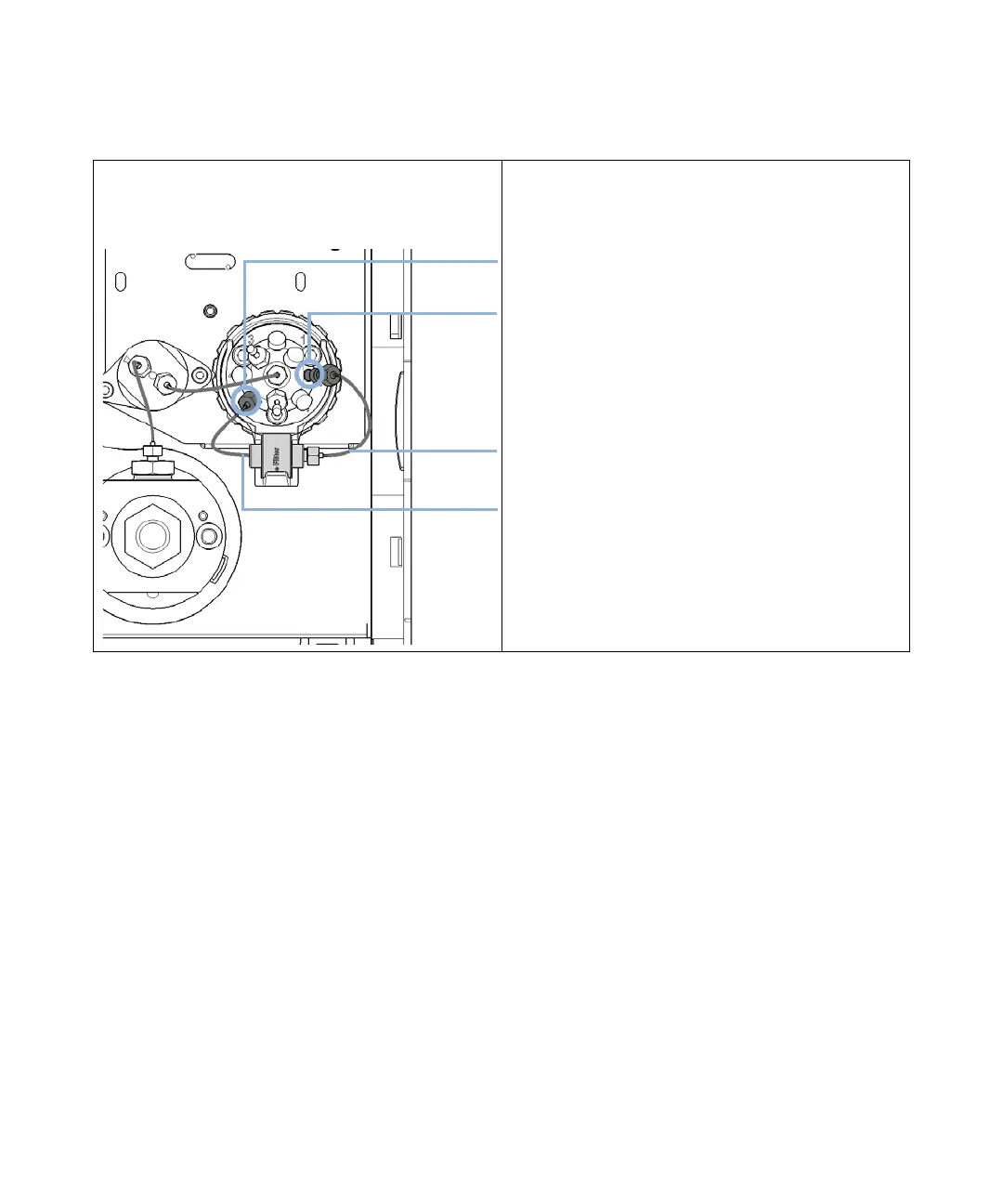

Put the inline filter to the clamp and install its capillaries.
The integrated capillary is connected to port 5 of the
Multi Purpose Valve. The removable capillary is
connected to port 8.
Port 5
Port 8
Integrated
capillary
Removable
capillary
