1290 Infinity Quaternary Pump User Manual 135
Maintenance
9

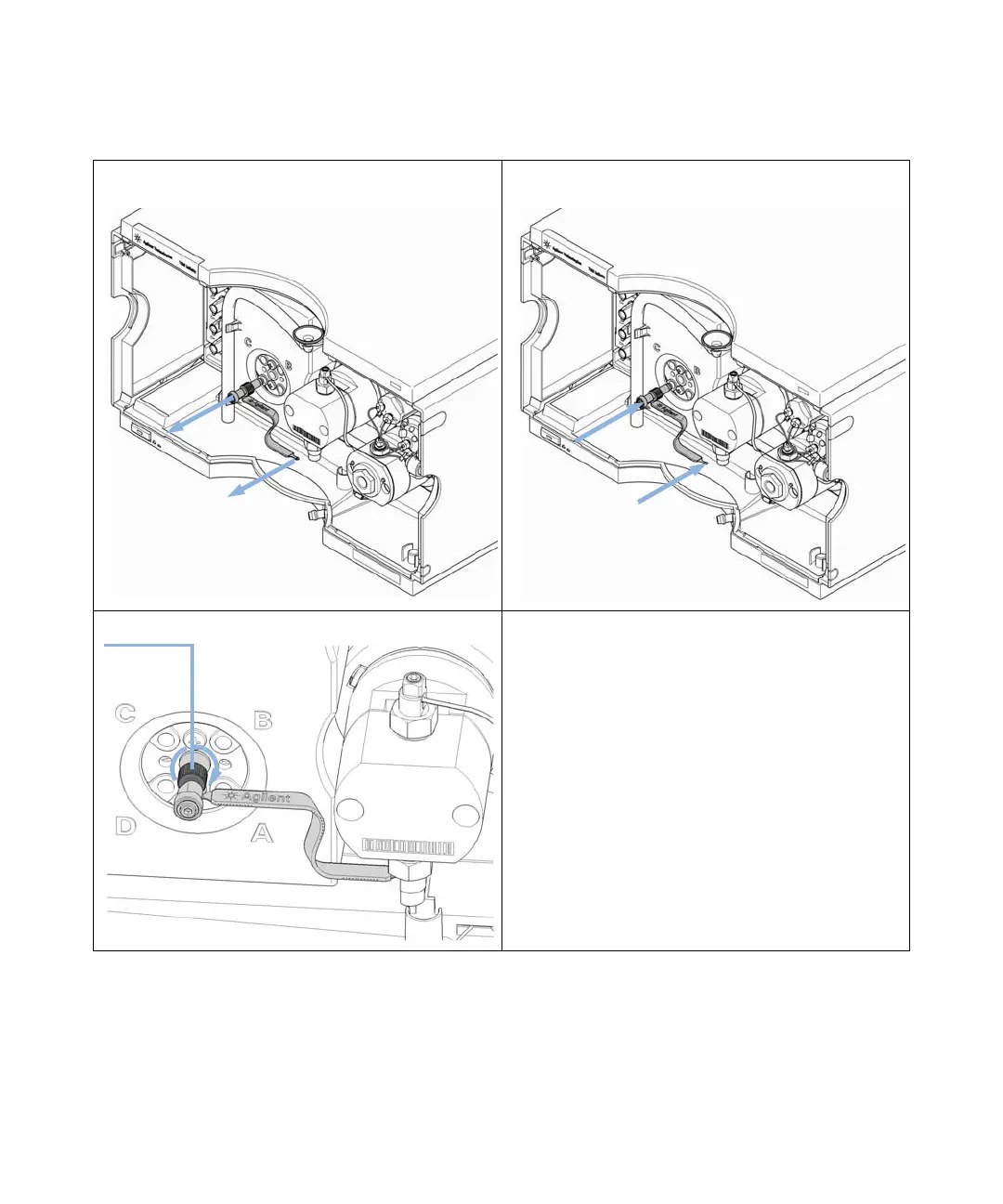

Replacing the Inlet Weaver
3
Pull the inlet weaver out of the inlet valve. 4 Insert the new inlet weaver to the inlet valve. Fix the
weaver with the plastic screw.
5 Fix the fitting of the new inlet weaver to the MCGV. 6 Reconnect tubings between MCGV and degasser.
Fitting
