16 1290 Infinity Quaternary Pump User Manual
1 Introduction
Positions of the Multi Purpose Valve
Normal Operating Mode With Mixer
In this mode, the flow passes an optional Jet Weaver and the inline filter.
This configuration is recommended for special applications which require
an increased mixing efficiency.

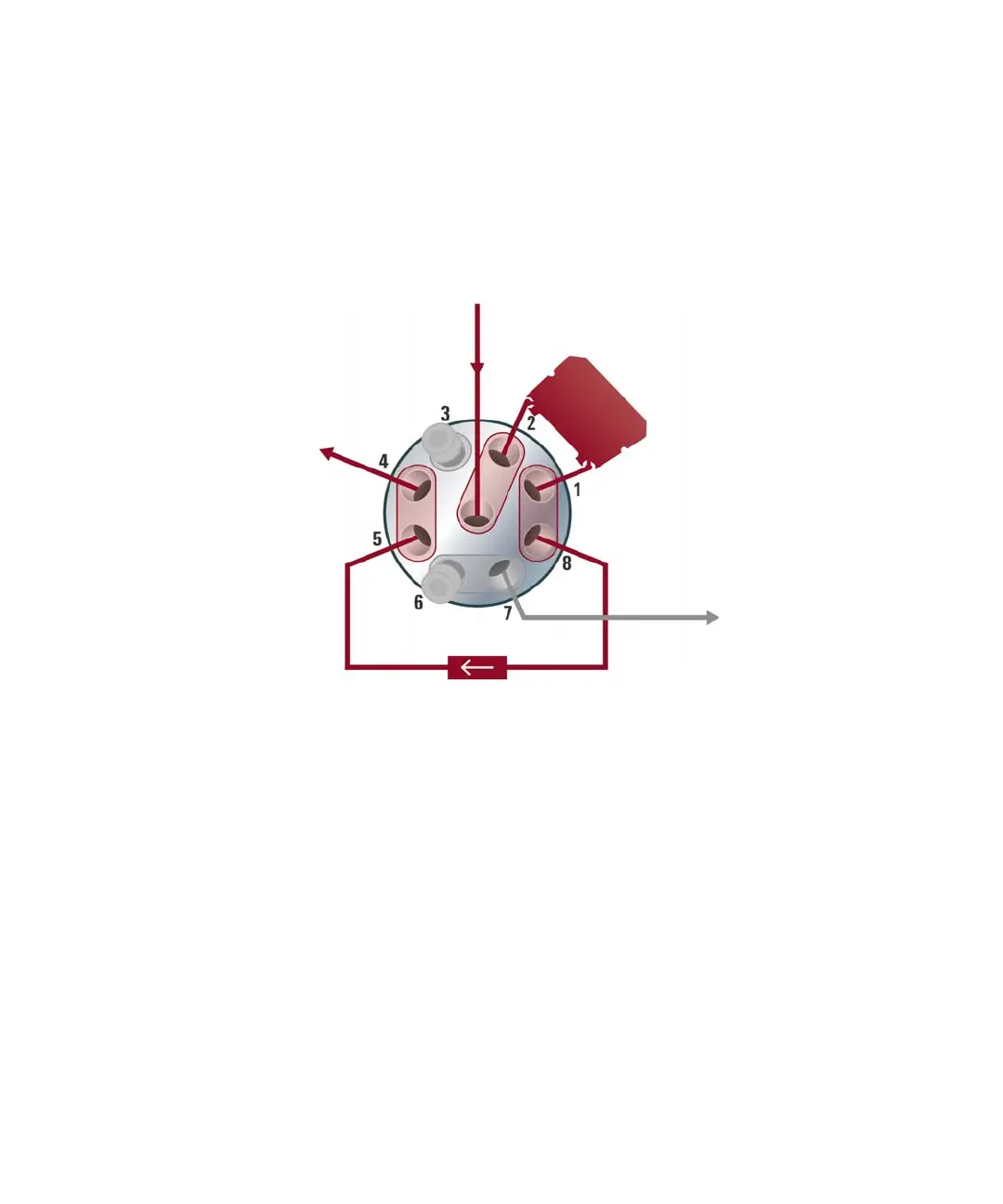

Figure 4 Valve position in normal operating mode with mixer
From pump
To system
Inline filter
Jet Weaver
