1290 Infinity Quaternary Pump User Manual 181
Maintenance
9
Assembling the Pump Head
15

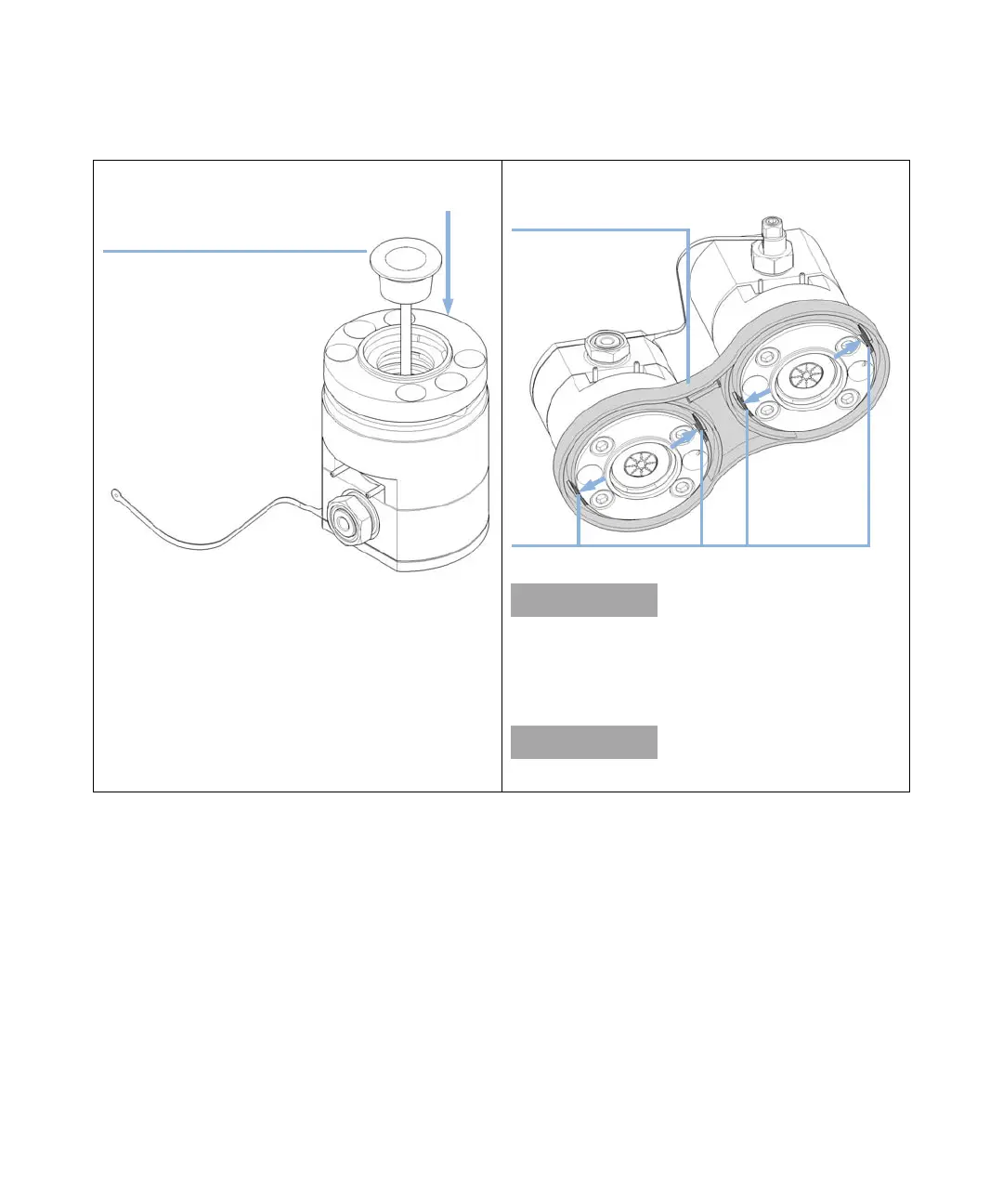

Lubricate the pump piston with isopropanol or another
suitable solvent, and insert it.
16 Insert both pump heads to the link plate and make sure
that the clips snap in that fix the pump heads.
Observe the correct orientation of the primary and the
secondary pump head. This is important for correct
fixation of the heat exchanger and the capillaries, as
described in the following steps.
Mind the orientation of the ID tag.
