1290 Infinity Quaternary Pump User Manual 45
Installing the Module
3
Installing the Pump
3 Connect the power cable to the power connector at the back of the
module.
4 Connect the required interface cables to the rear of the pump.

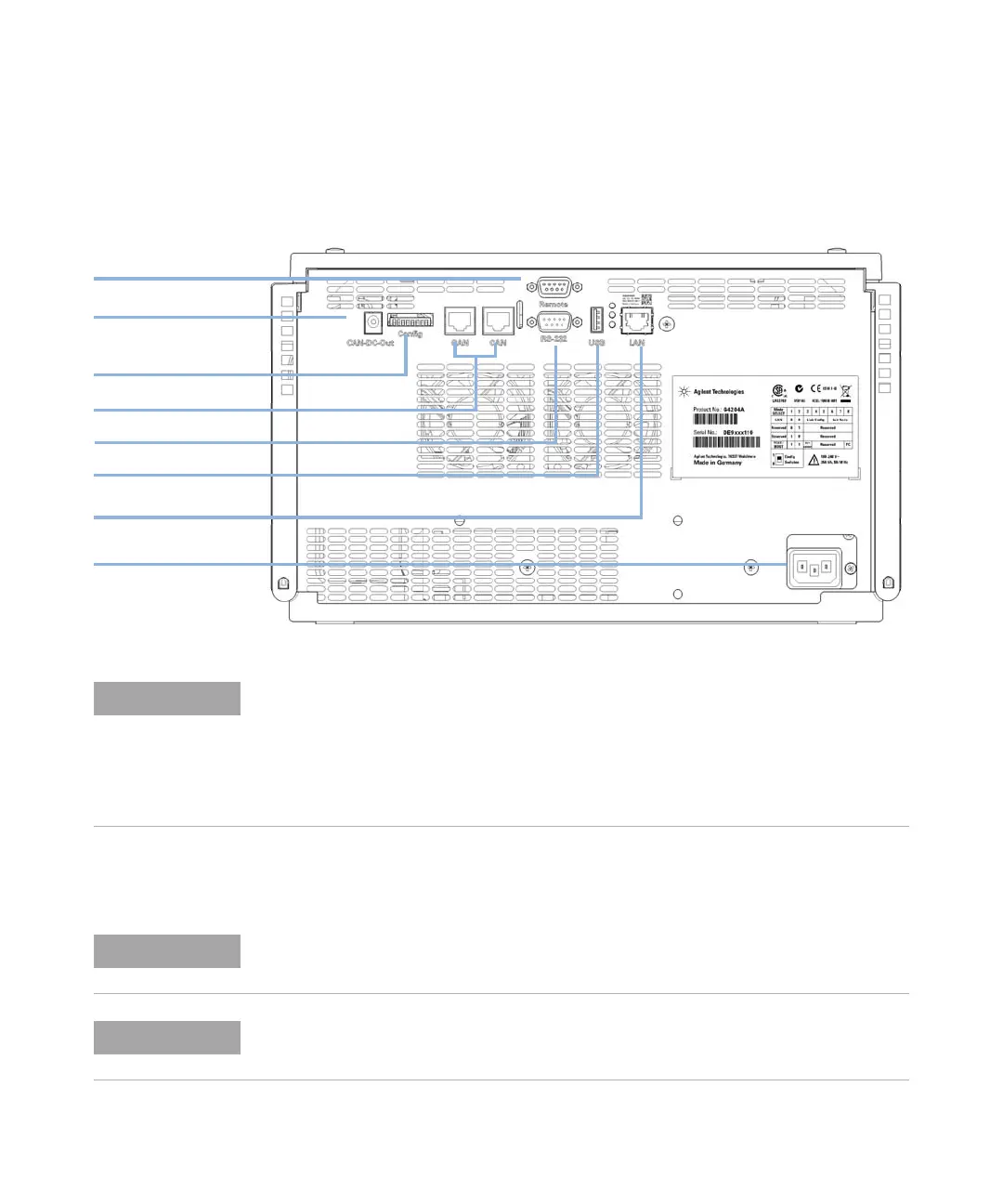

Figure 15 Rear view of the quaternary pump
5 Turn on the power by pushing the button at the lower left hand side of
the module.
The power button stays pressed in and the status LED should be green.
APG-Remote
Power supply for
external CAN valves
Configuration switch
CAN-Bus
RS232
USB port
LAN
Power plug
In an Agilent 1290 Infinity System, the individual modules are connected by CAN cables. An
Agilent 1200 Series Instant Pilot can be connected to the CAN bus of any module.
Connection to an Agilent data system is established through the built-in LAN port of the
detector. The LAN port of the detector must be used as the detector generates the highest
data rate of all modules. For more information about connecting the Instant Pilot or Agilent
Data System, please refer to the respective user manual. For setting up the LAN access,
see “LAN Configuration” on page 259.
When the line power button stands out and the green light is off, the module is turned off.
The module was shipped with default configuration settings. For changing these settings,
refer to section Setting the 8-bit configuration switch.
