Trigger In
The Trigger In connector is 5V Max pk and DC, CAT I (line
isolated).
Clock In
The Clock In connector is 5.5V Max pk and DC, CAT I (line
isolated).
Dimensions

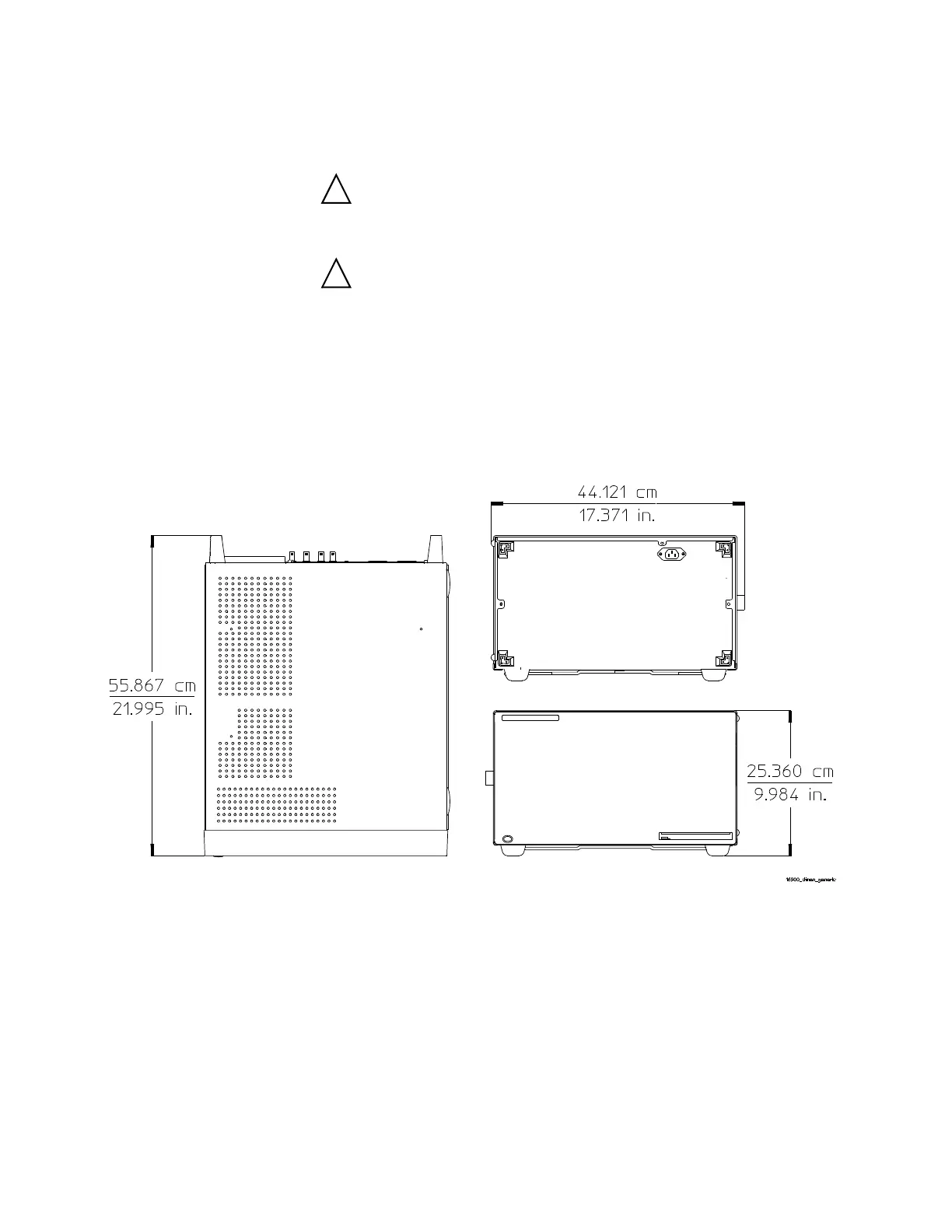

The following figure provides dimensions for the 16900
series logic analyzer mainframes in centimeters and inches.
!
!
