To remove and replace the line filter assembly
Perform previous procedures:
• “To prepare the instrument for disassembly" on
page 48
• “To remove and replace the cover" on page 52
1 Disconnect the power cable from the power supply.
2 Using a Torx T10 screwdriver, remove the 2 screws
securing the power socket to the frame and the 1 screw
to the ground wire.
3 Reverse this procedure to replace.

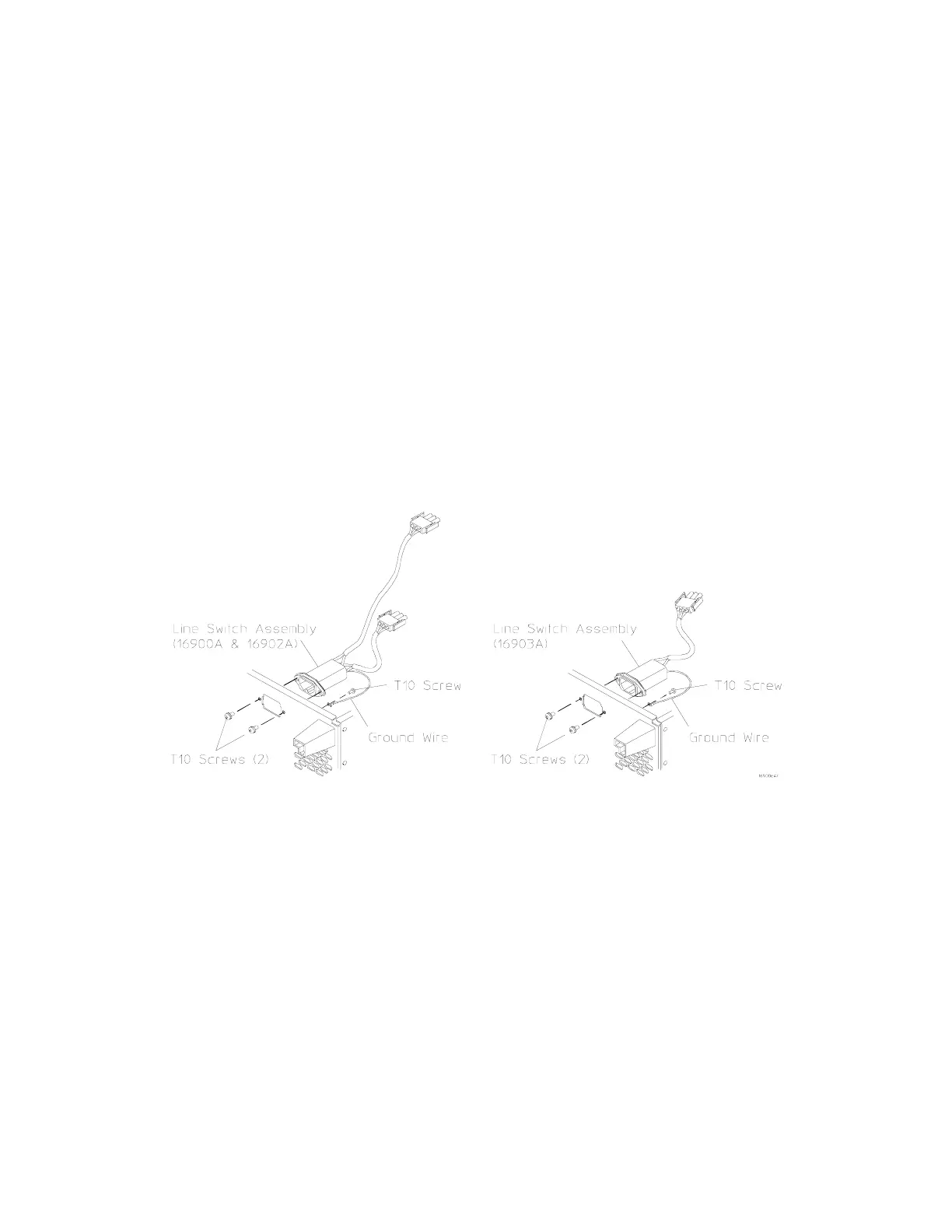

Line Filter Assembly
(16900A & 16902A)
Ground Wire
T10 Screw
T
10 Screws (2)
Line Filter Assembly
(16903A)
Ground Wire
T10 Screw
T10 Screws (2)
