To remove and replace the CPU tray
16900A and 16902A CPU tray
1 Perform previous procedures:
• “To prepare the instrument for disassembly" on
page 48
• “To remove and replace the cover" on page 52

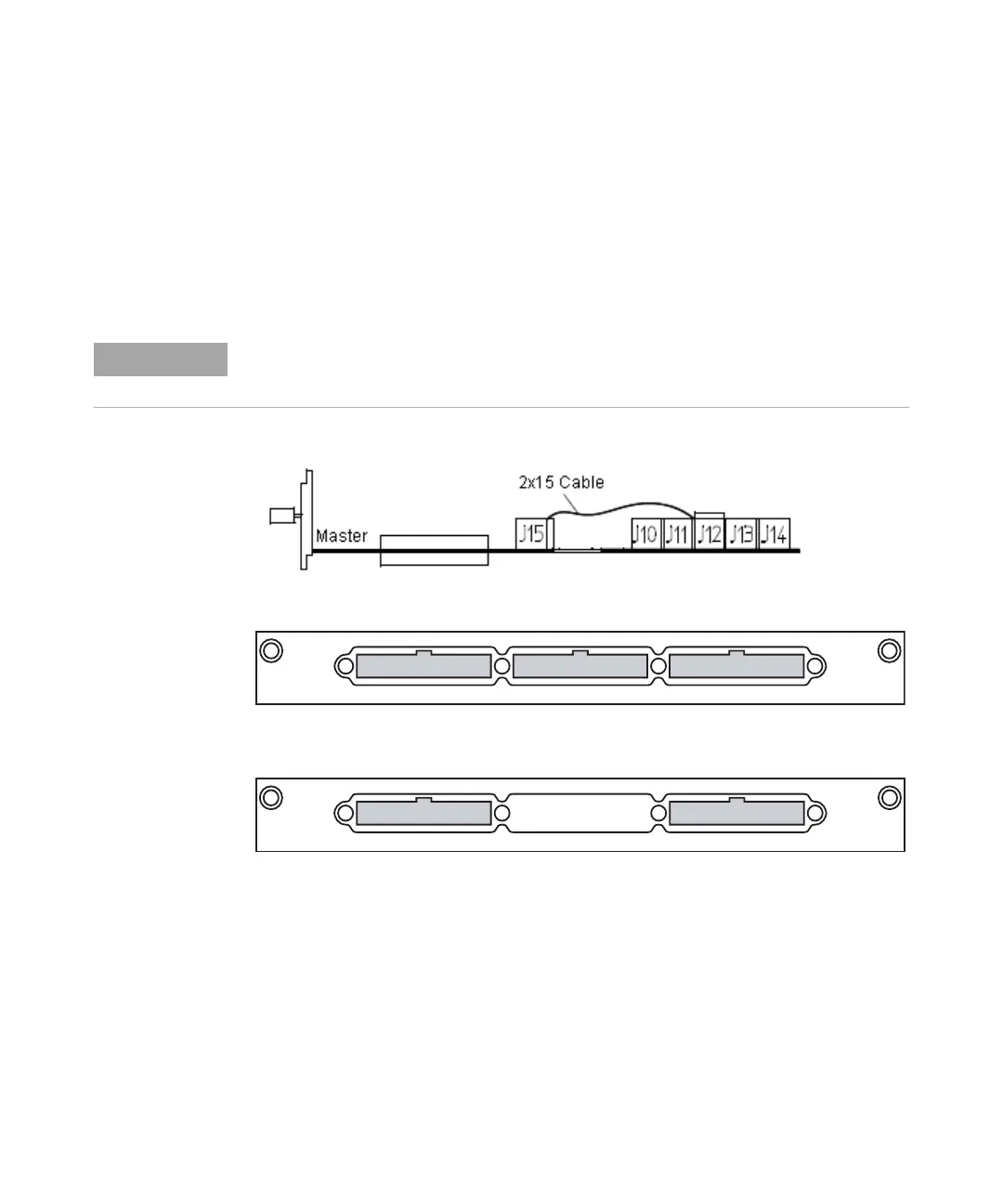

2 Disconnect cables from the module interface board.
3 Remove 7 screws from the back of the CPU tray using a
Torx T10 screwdriver.

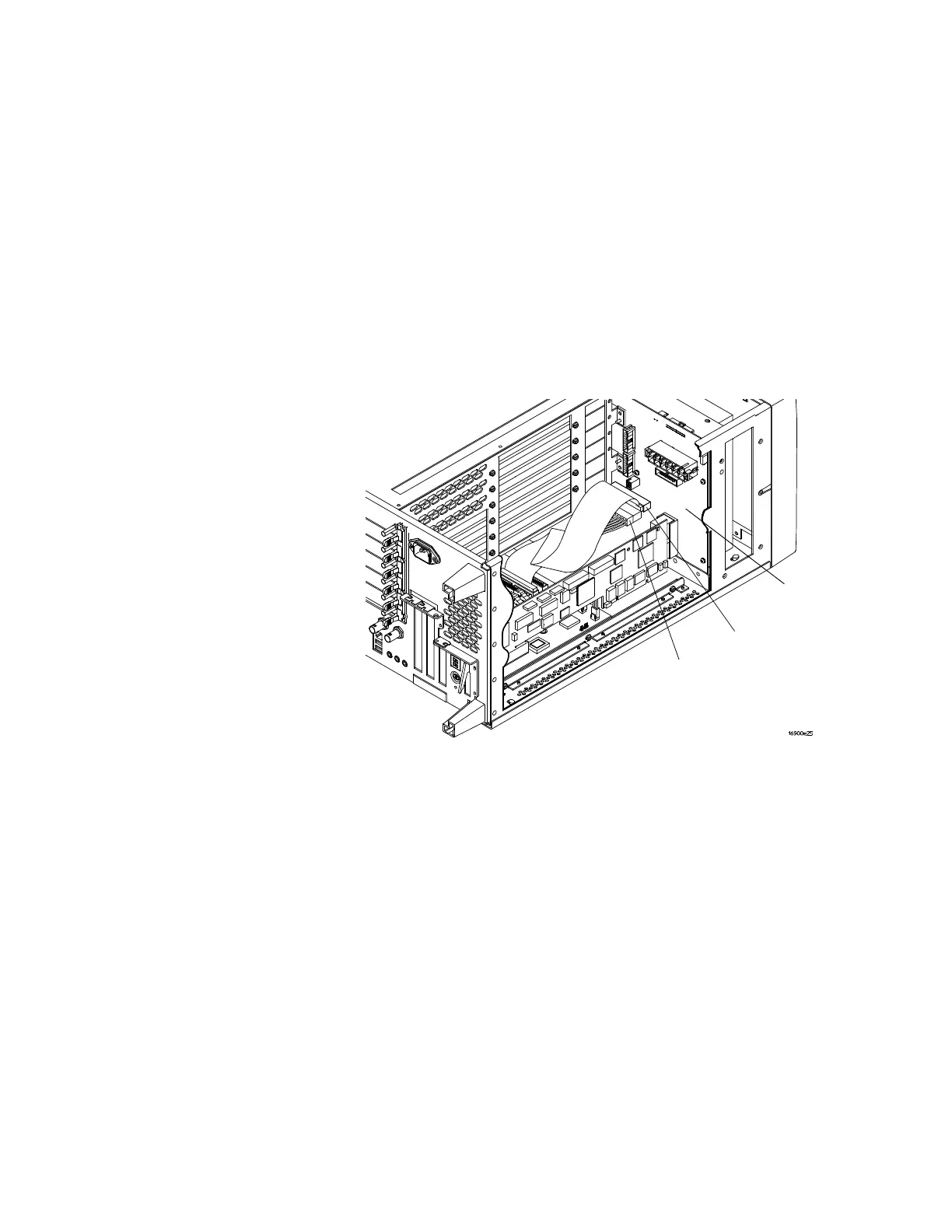

CPU power
CD ROM cable
Module Interface
Board
To Next Page
