68 16900A, 16902A, and 16903A Service Guide

6 Replacing Assemblies

To remove and replace the backlight inverter board

1 Perform previous procedures:

• “To prepare the instrument for disassembly" on

page 48

• “To remove and replace the cover" on page 52

• “To remove and replace the front panel assembly" on

page 64

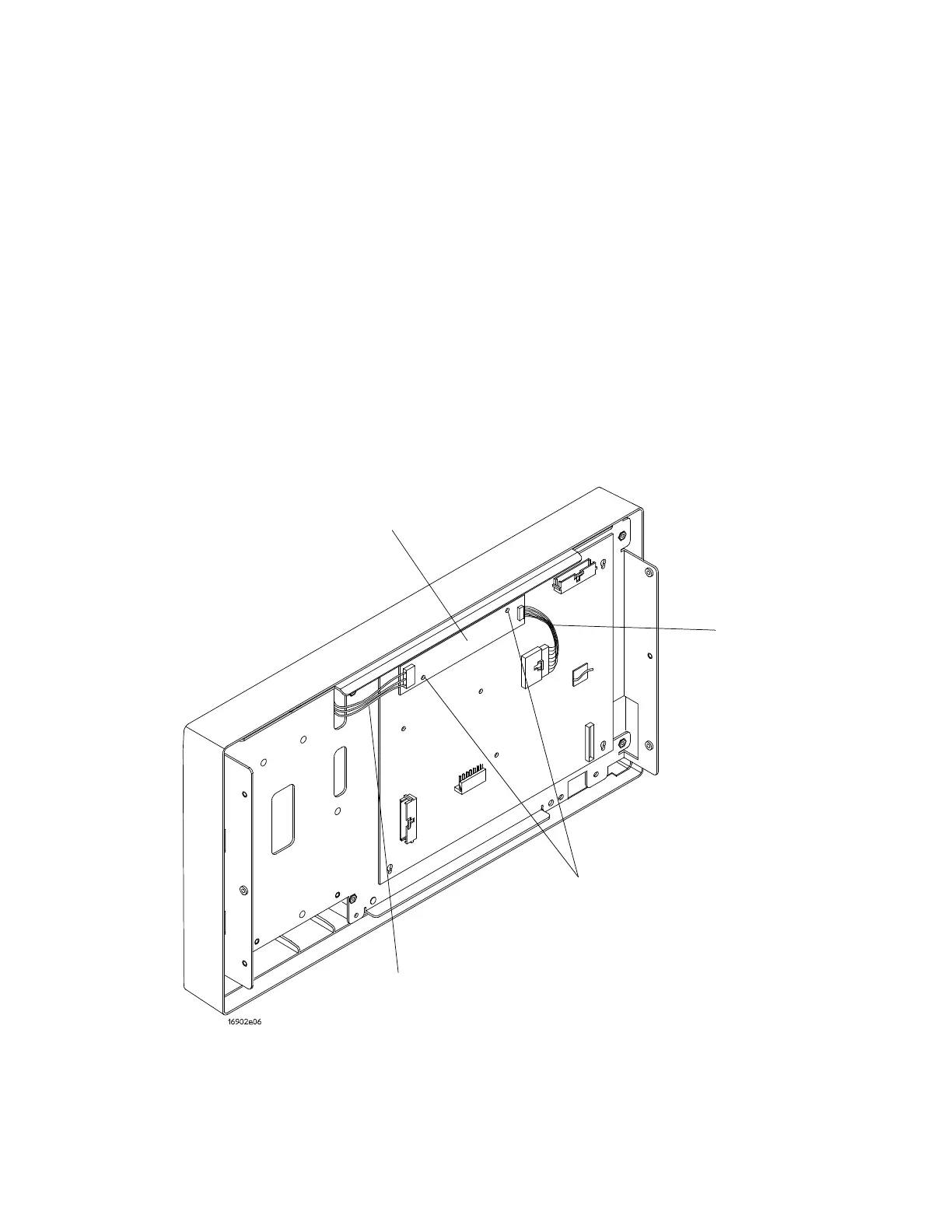

2 Place the front panel assembly face down and disconnect

the cables from the inverter board as shown.

3 Using a Torx T6 screwdriver, remove the 2 screws

securing the board to the front panel board.

4 Reverse this procedure to install the backlight inverter

board.

Backlight

Inverter Board

Inverter

Cable

T6 Screws (2)

LCD Cable

(pink)
