Replaceable Parts 7

16900A, 16902A, and 16903A Service Guide 91

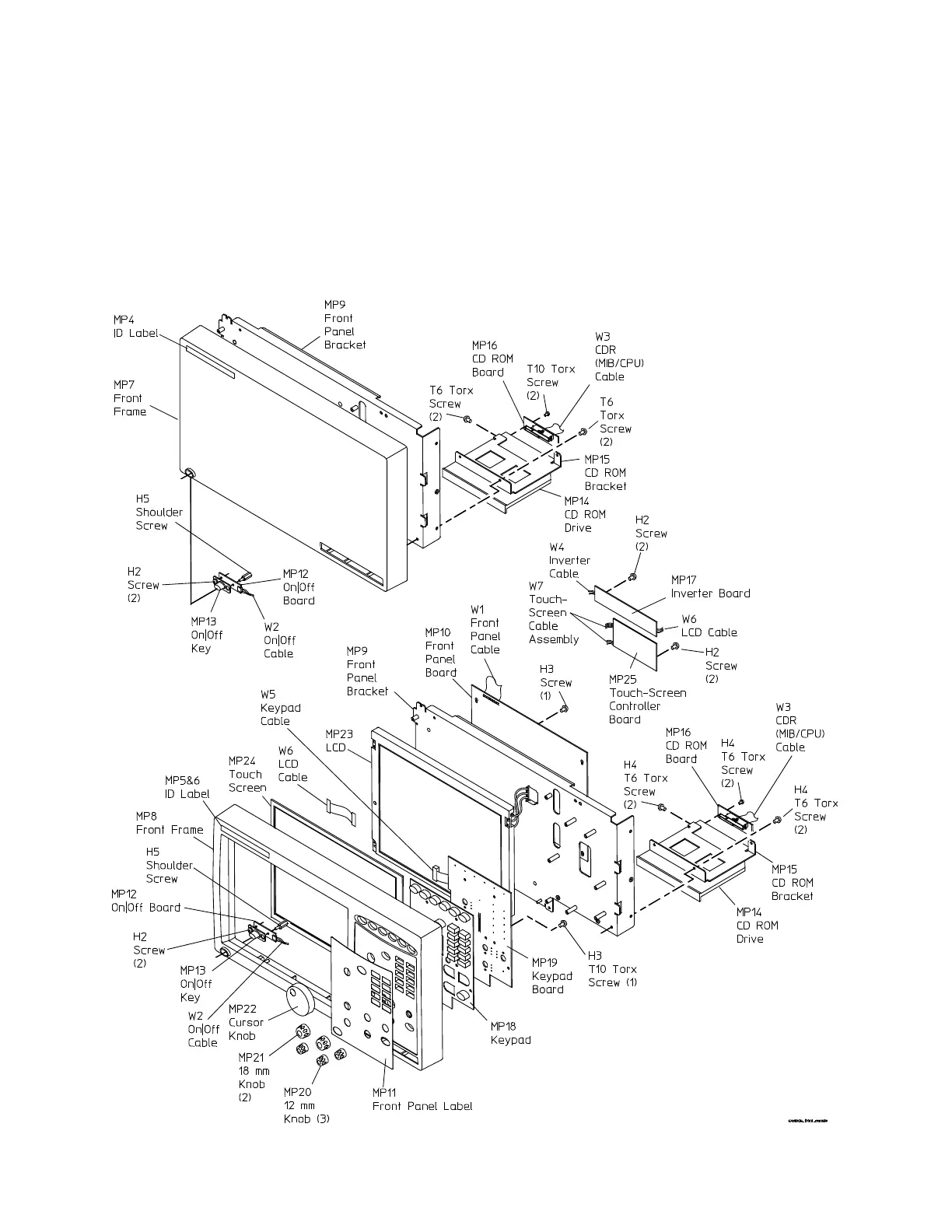

Front Panel Assemblies

The 16900A supports external displays. The 16902A and

16903A have a built- in color touch screen display and also

support external displays.
