Agilent Technologies 16900A

Replacing Assemblies 6
16900A, 16902A, and 16903A Service Guide 63
To remove and replace the motherboard
1 Perform previous procedures:
• “To prepare the instrument for disassembly" on
page 48
• “To remove and replace the cover" on page 52
• “To remove and replace the CPU tray" on page 53
2 Disconnect the following cables:
• Power
• Reset
• CD- ROM
3 Remove the 6 Hex Studs securing the connectors to the
rear panel of the CPU tray.
4 Using a Torx T10 screwdriver, remove the 7 screws that
secure the motherboard to the bottom of the CPU tray.
5 Reverse this procedure to install the CPU tray.

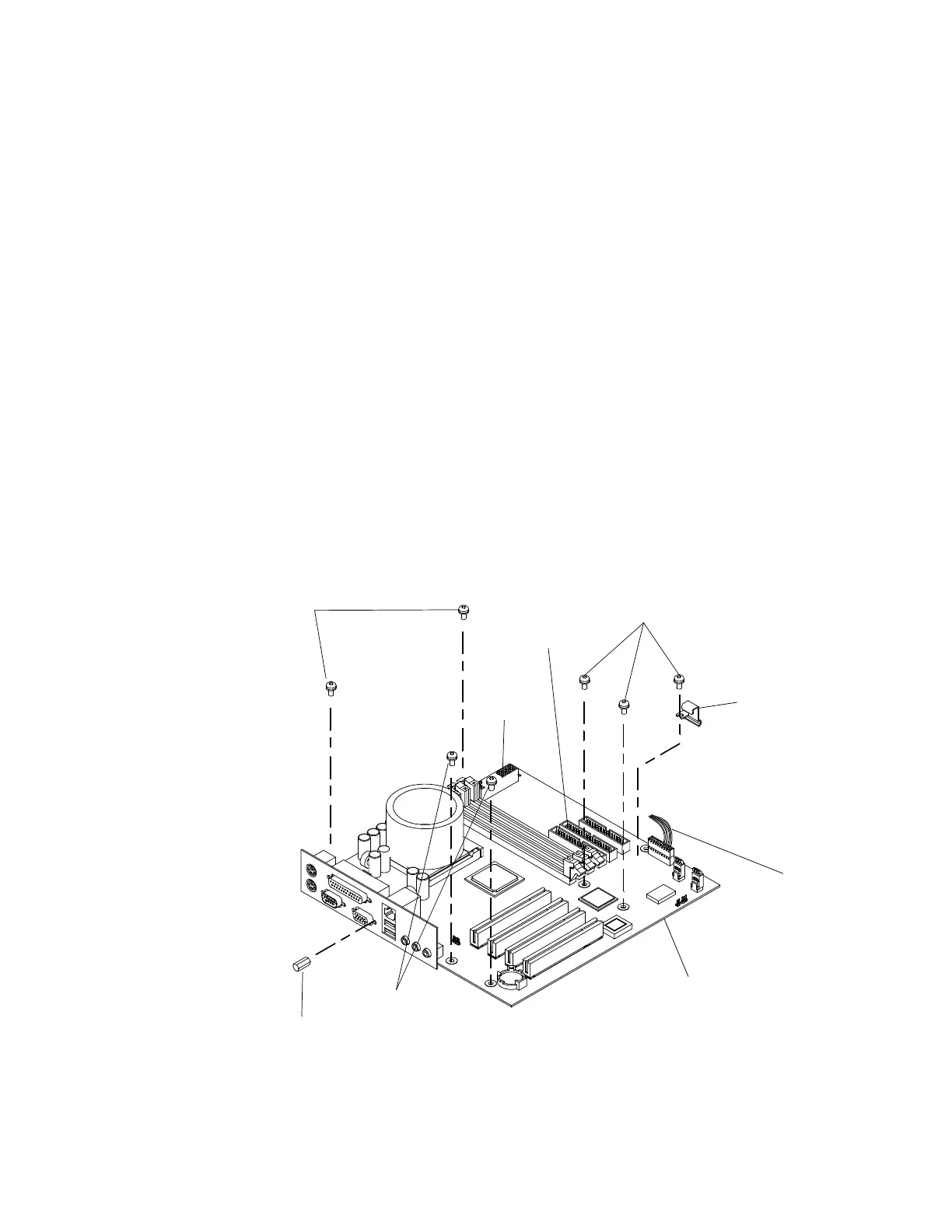

Hex
Studs (6)
T10
Screws
(2)
Power
Cable
Connector
Reset
Cable
Motherboard
(Representative drawing.
Yours may look different)
T10
Screws (3)
T10
Screws (2)
Reset
Cable
Bracket
CD-ROM
Cable
Connector
