42 16900A, 16902A, and 16903A Service Guide

5 Troubleshooting

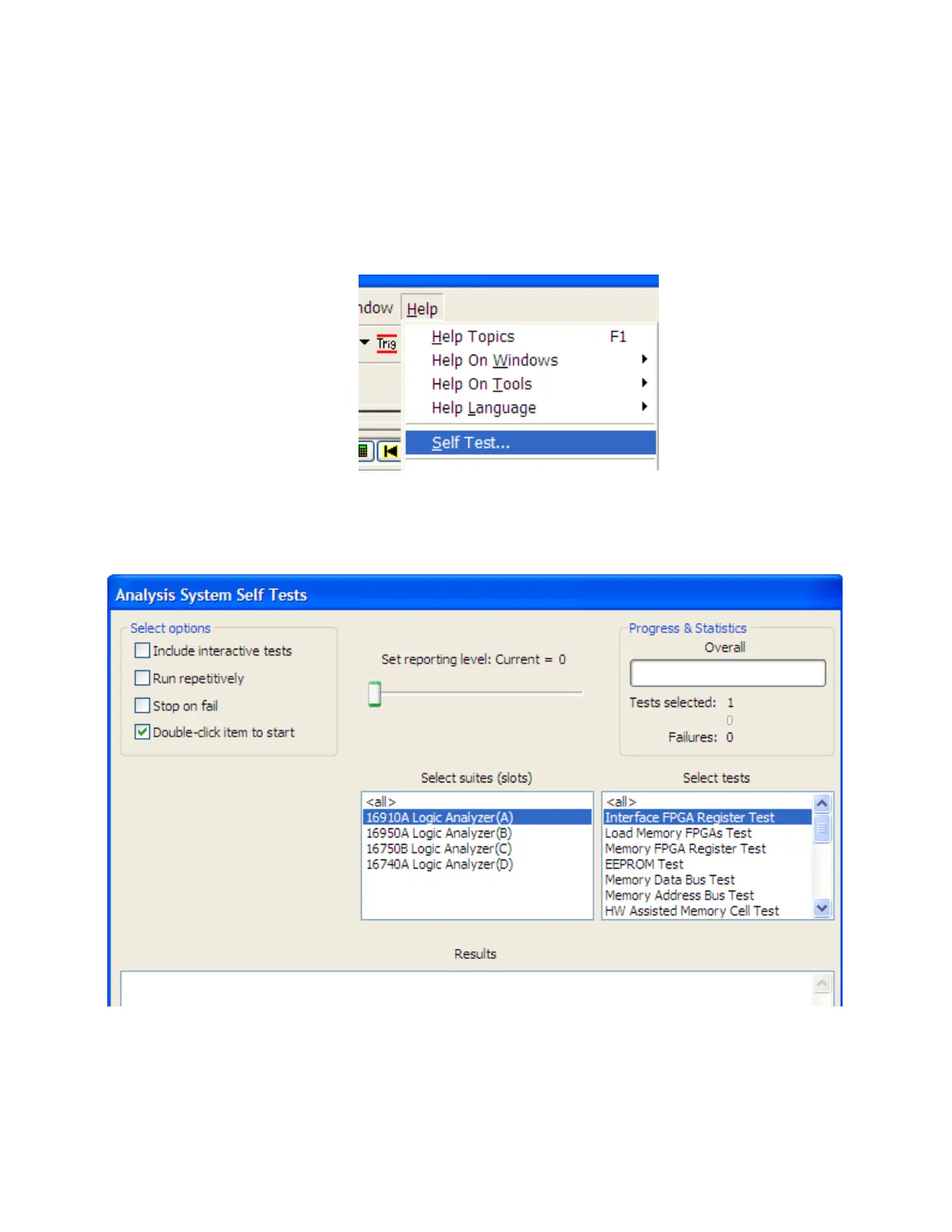

To run the self-tests

1 In the Agilent logic analyzer application, click Help>Self

Test.

2 In the Analysis System Self Test dialog, double click on

the test you want to run.
