Replaceable Parts 7

16900A, 16902A, and 16903A Service Guide 97

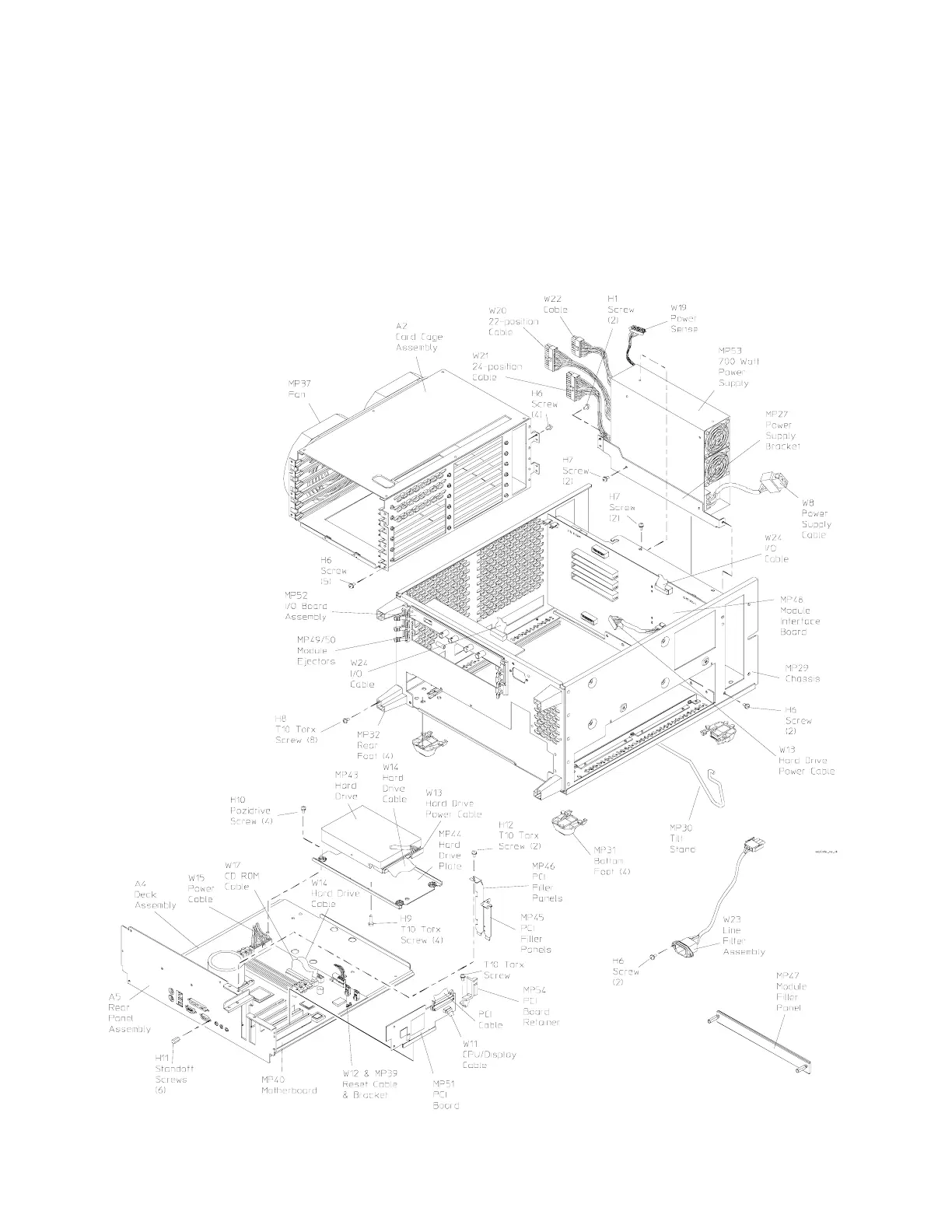

16903A Frame

The 16903A logic analysis system is modular with slots for 3

measurement modules.
