Troubleshooting 5

16900A, 16902A, and 16903A Service Guide 41

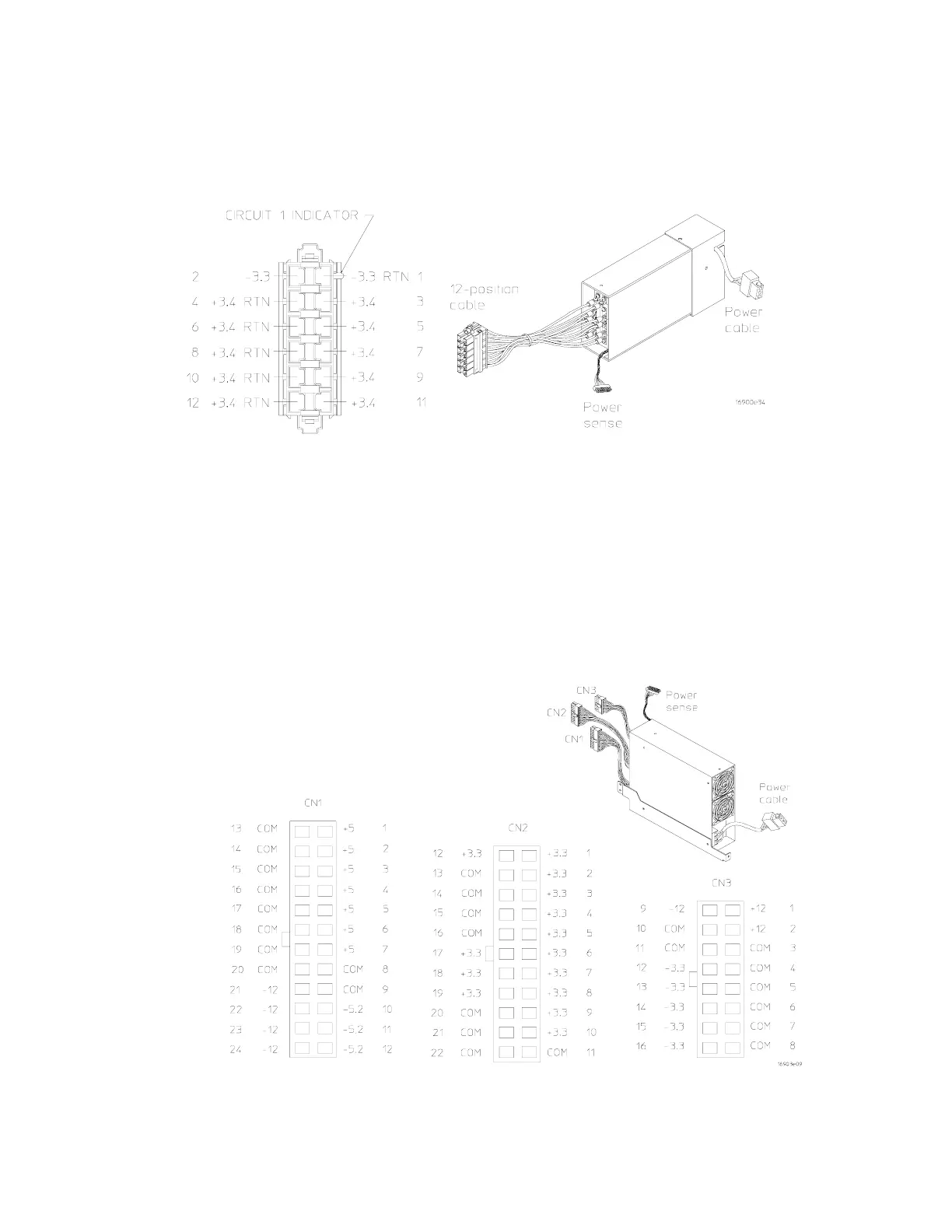

500 watt power supply voltages

16903A power supply

The 700 watt power supply in the 16903A system is different

than the one in the 16900/02A systems. Use the following

graphics when measuring the voltages on the 16903A power

supply.

700 watt power supply voltages
