The Agilent 16900-series Logic Analysis Systems - At a Glance
The Agilent Technologies 16900- series logic analysis systems
are modular systems with slots for logic analyzer and other
types of measurement modules.
All models have a familiar Windows®-based user interface
which takes the complexity out of making logic analyzer
measurements. You can perform all operations directly from
one window.

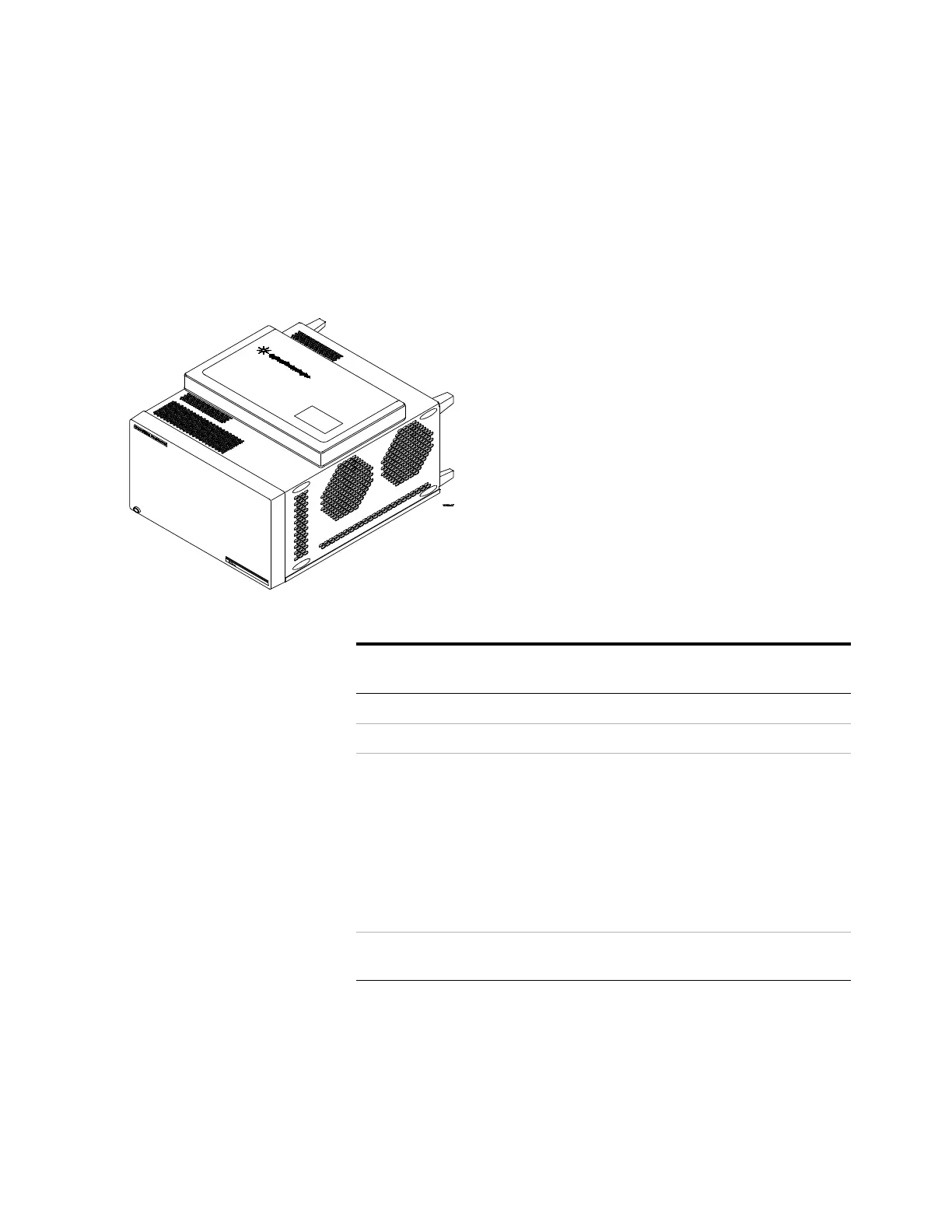

16900A
Logic Analysis
System
16902A or 16903A
Logic Analysis
System
Table 1 Model comparisons
Agilent model
number
16900A 16902A 16903A
Number of slots 663
Multiframe Pro Yes Yes No
Display and
resolution
Uses external
display, supports
up to four external
displays at up to
1600 x 1200 (with
PCI video card)
Built-in color
touch screen
display, 12.1 inch
at 800 x 600,
supports up to four
external monitors
at up to 1600 x
1200 (with PCI
video card)
Built-in color
touch screen
display, 12.1 inch
at 800 x 600,
supports up to four
external monitors
at up to 1600 x
1200 (with PCI
video card)
PCI expansion
slots
2 full profile
1 low profile
2 full profile
1 low profile
1 full profile
1 low profile
