52 16900A, 16902A, and 16903A Service Guide
6 Replacing Assemblies

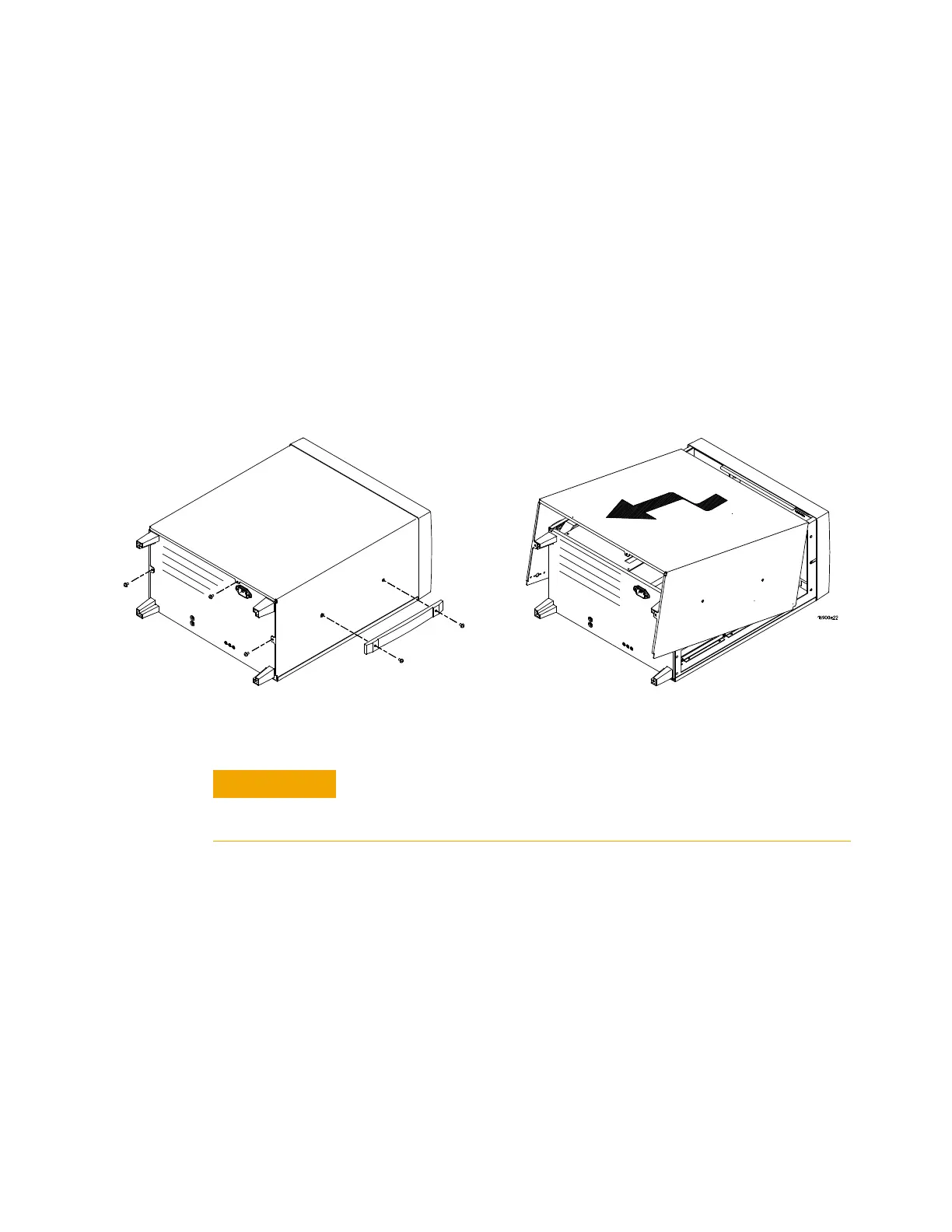

To remove and replace the cover
1 Perform previous procedures:
• “To prepare the instrument for disassembly" on
page 48
2 Using a Torx T15 screwdriver, remove the handle
assembly.
3 Using a Torx T10 screwdriver, remove 3 screws that
secure the cover to the chassis.
4 Slide the cover back and up to remove.
5 Reverse this procedure to replace the cover.
T-15 Screws
T10 Screws
CAUTION
When reinstalling the handle assembly, ensure that the screws are
torqued to 2.372 Newton meters (21 inch pounds) so that they do
not work themselves loose.
To Next Page
