44 16900 Series Logic Analysis Systems Installation Guide
2 Installing Logic Analyzer Cards and Probes
16951/50B Logic Analyzer (2-card module)

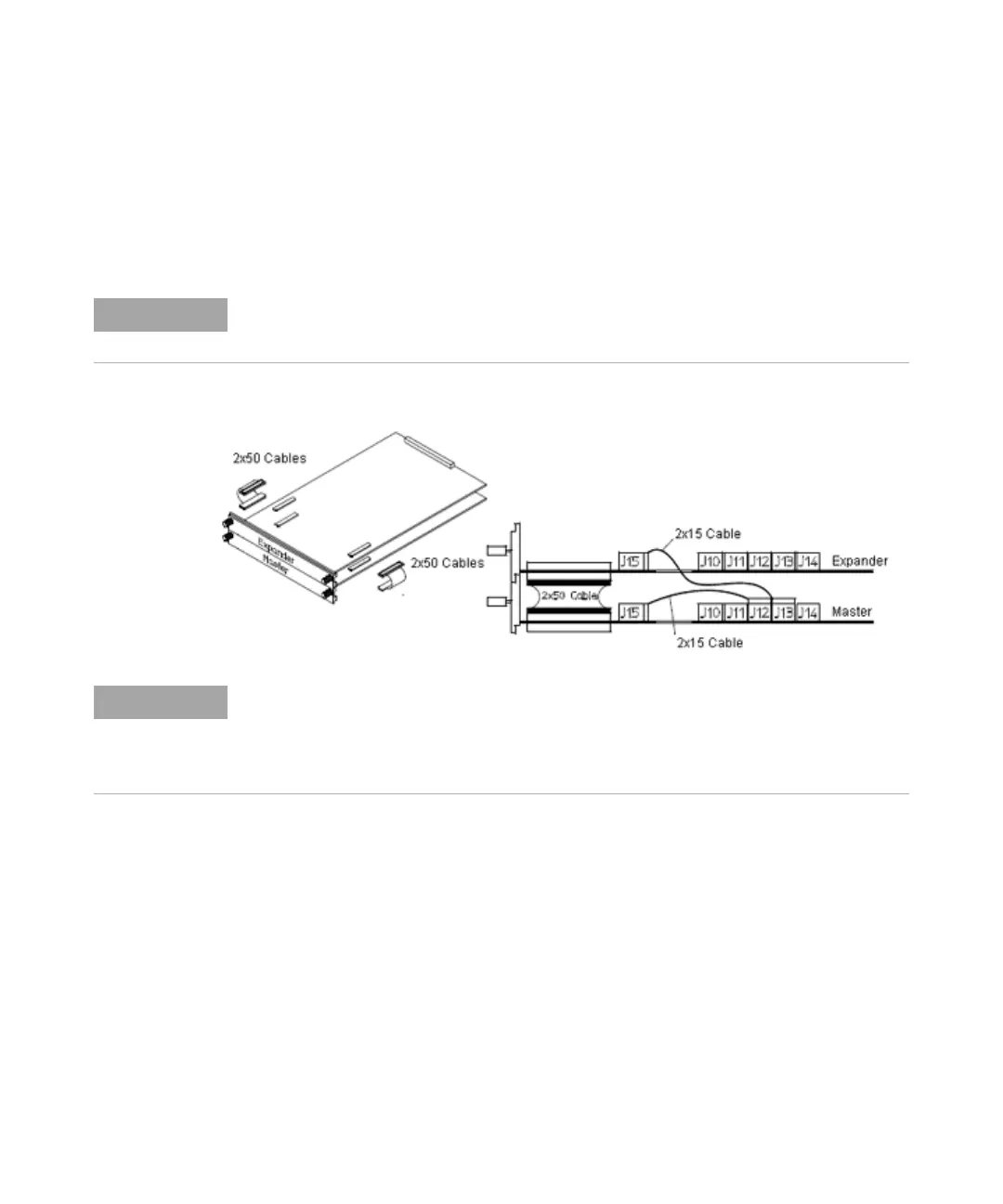

Use two 2 x 15 cables and two 2 x 50 cables (in the accessory pouch) to
connect the modules.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
The 16950B logic analyzer module must only be combined with another 16950B module.
Likewise, the 16951B logic analyzer module must only be combined with another 16951B
module.
A 16950B combined set will default to the lowest memory depth in the set.
