Troubleshooting 5
16900A, 16902A, and 16903A Service Guide 31

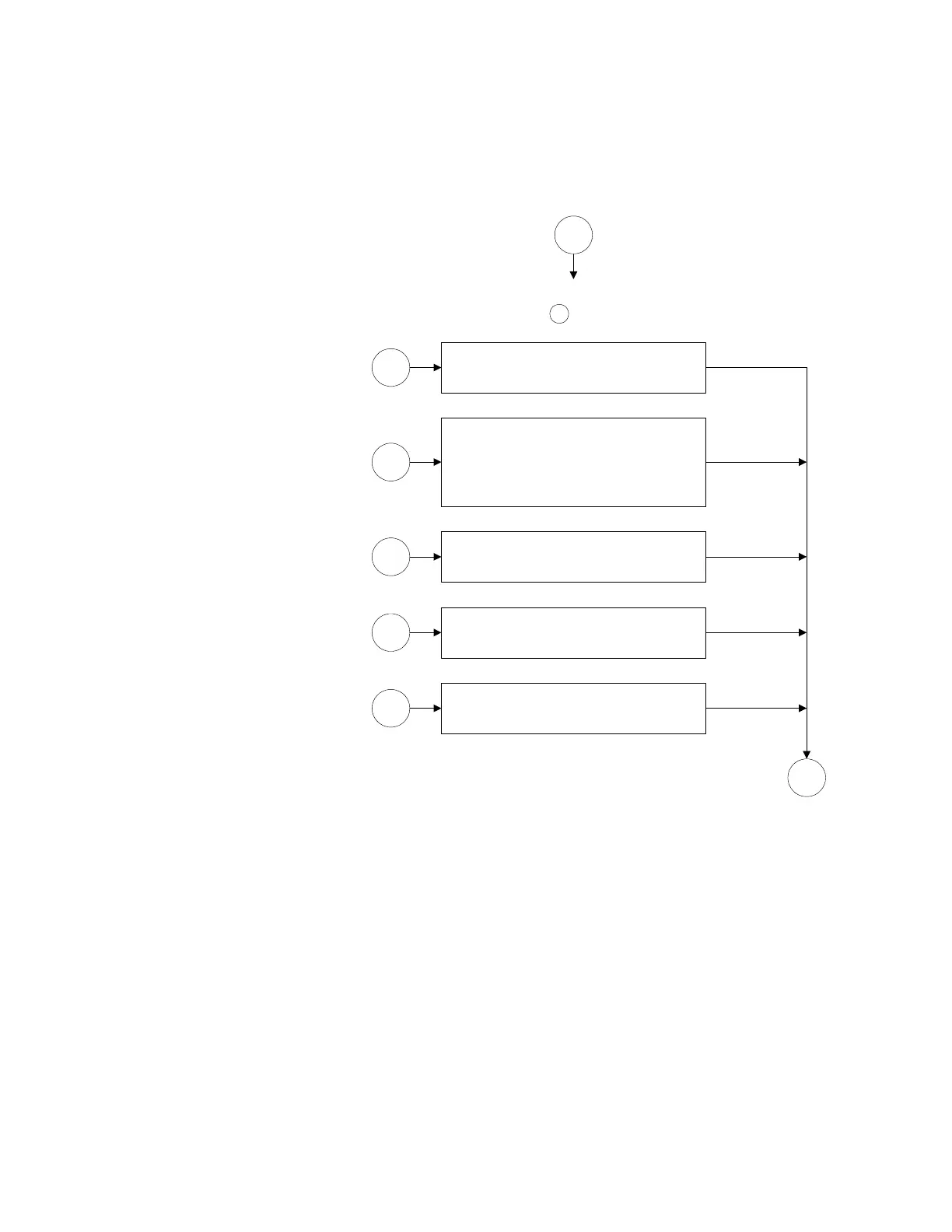

Figure 5 16900A and 16902A Application Troubleshooting Flowchart
5
Reinstall the logic analyzer application.
Replace the MIB board.
Replace the PCI bridge board.
Check all cables to front panel assembly .
Check all cables to CPU motherboard.
Check all cables to IO board.
Check PCI bridge board is fully seated.
Reseat as necessary.
1
Replace the IO board.
1
Try each of the following steps in order.
Return to between each.
A
B
C
D
E
To Next Page
