34410A/11A/L4411A Service Guide 11

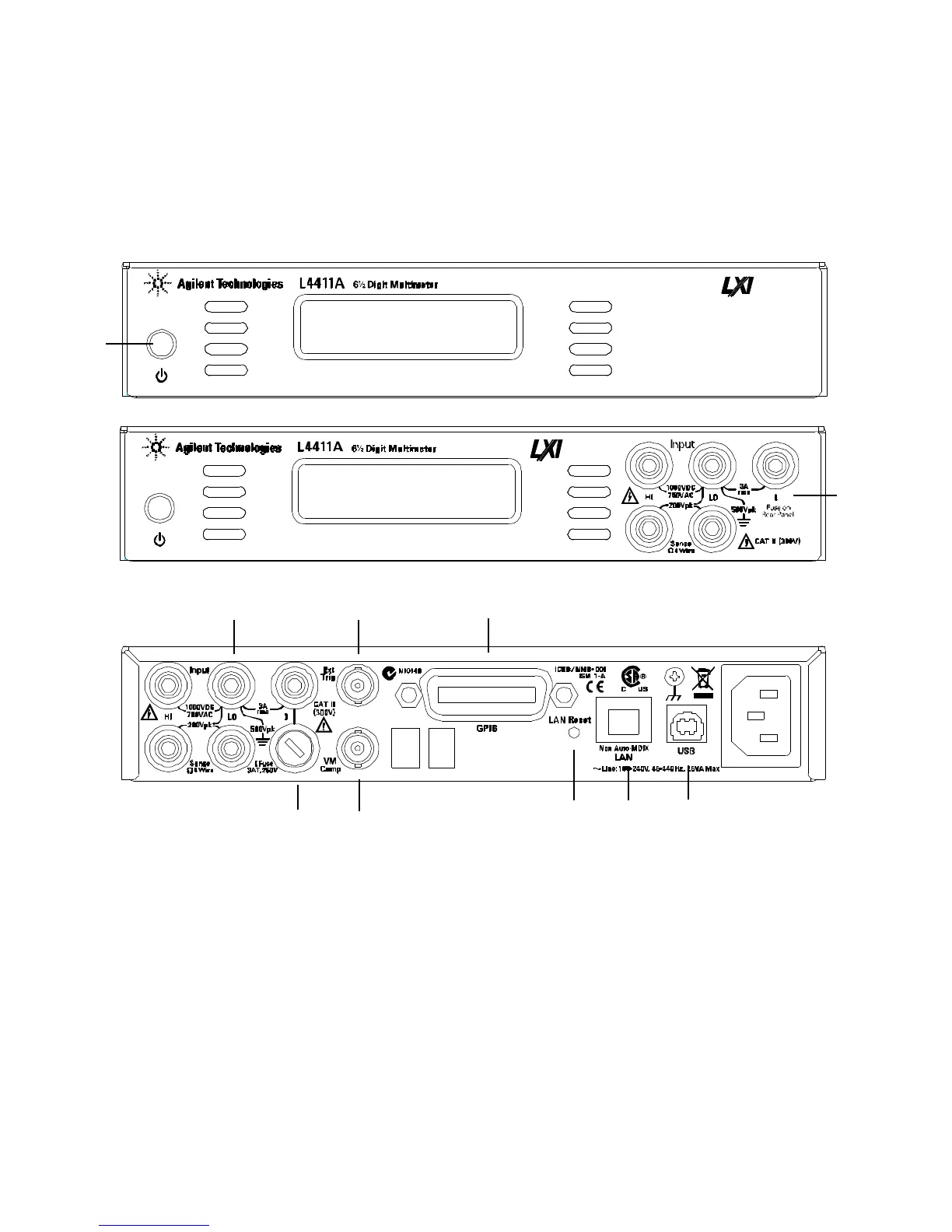

The L4411A at a Glance
L4411A Option 1 - Front Panel Measurement Terminals
1
2
4
6
2
1 On/Stand-By button
2 Input measurement terminals - rear panel or front panel (optional)
3 Input current protection fuse (Agilent p/n 2110-0780)
4 External trigger input - BNC
5 Voltmeter (measurement) complete output - BNC
6 GPIB interface connector
7 LAN Reset - resets the L4411A LAN configuration to its factory default settings
8 LAN Interface connector - non Auto-MDIX; may require crossover cable (included)
9 High-Speed USB interface connector (type B)
5
8
9
3
7
