34410A/11A/L4411A Service Guide 9

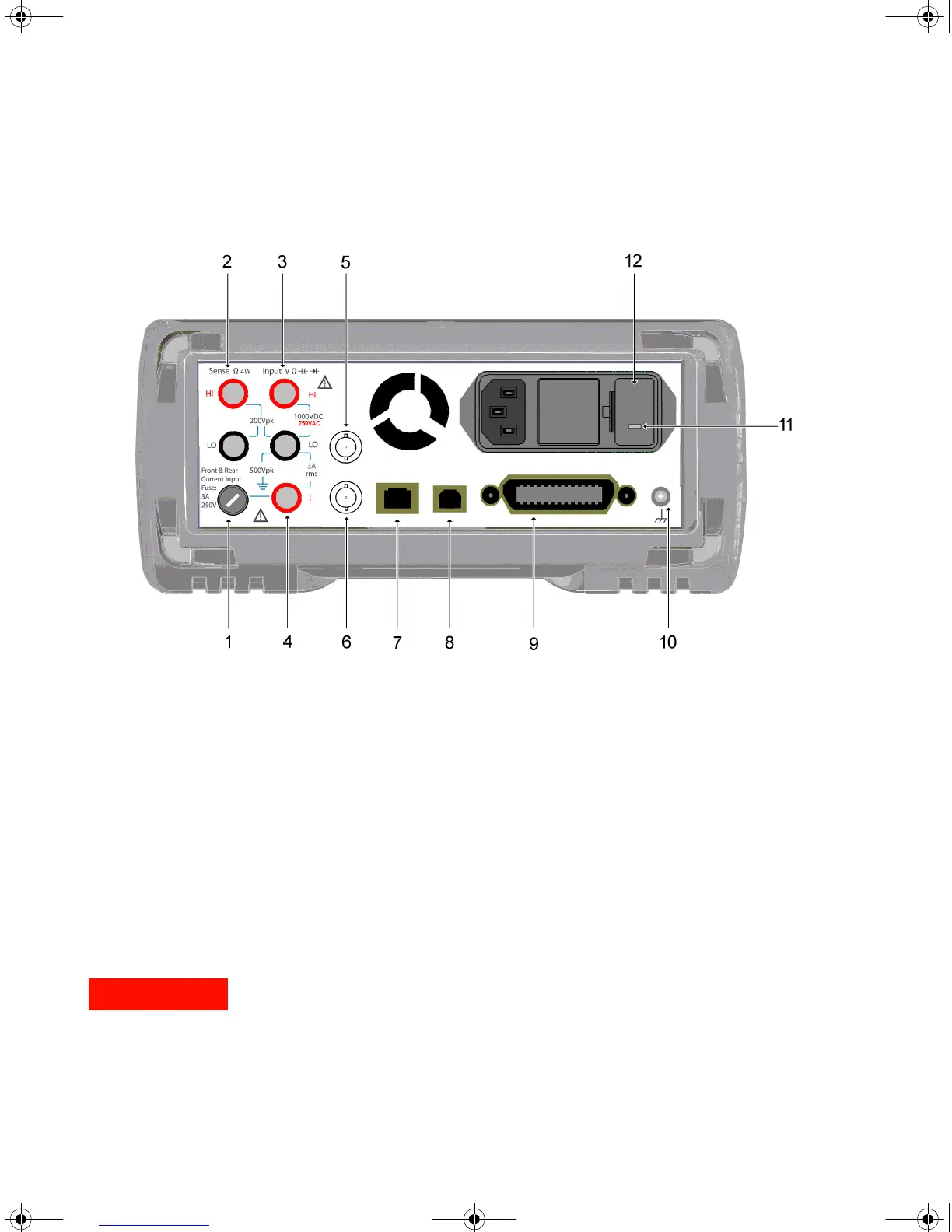

The Rear Panel at a Glance
For protection from electrical shock, the power cord ground must not be defeated. For continued protection
from fire, replace fuses only with fuses of the specified type and rating.
1 Current Input Fuse (front and rear)
2 HI and LO Sense Terminals (4-wire resistance and temperature)
3 HI and LO Input Terminals (voltage, resistance, and other functions)
4 Current Input Terminal (ac current and dc current only)
5 External Trigger Input (BNC)
6 Voltmeter Complete Output (BNC)
7 LAN Interface Connector
8 USB Interface Connector
9 GPIB Interface Connector
10 Chassis Ground
11 Power-Line Voltage Setting
12 Power-Line Fuse-Holder Assembly
