52 34410A/11A/L4411A Service Guide
2Quick Start
You must remove the carrying handle, and the front and rear rubber
bumpers, before rack mounting an instrument.
To Rack Mount the L4411A Multimeter
The L4411A is mounted in EIA rack cabinets using the Y1160A rack
mount kit. The kit allows you to mount one or two L4400 instruments
side-by-side on a sliding shelf, while occupying one EIA rack unit of
space. Rack mounting instructions are provided with the kit

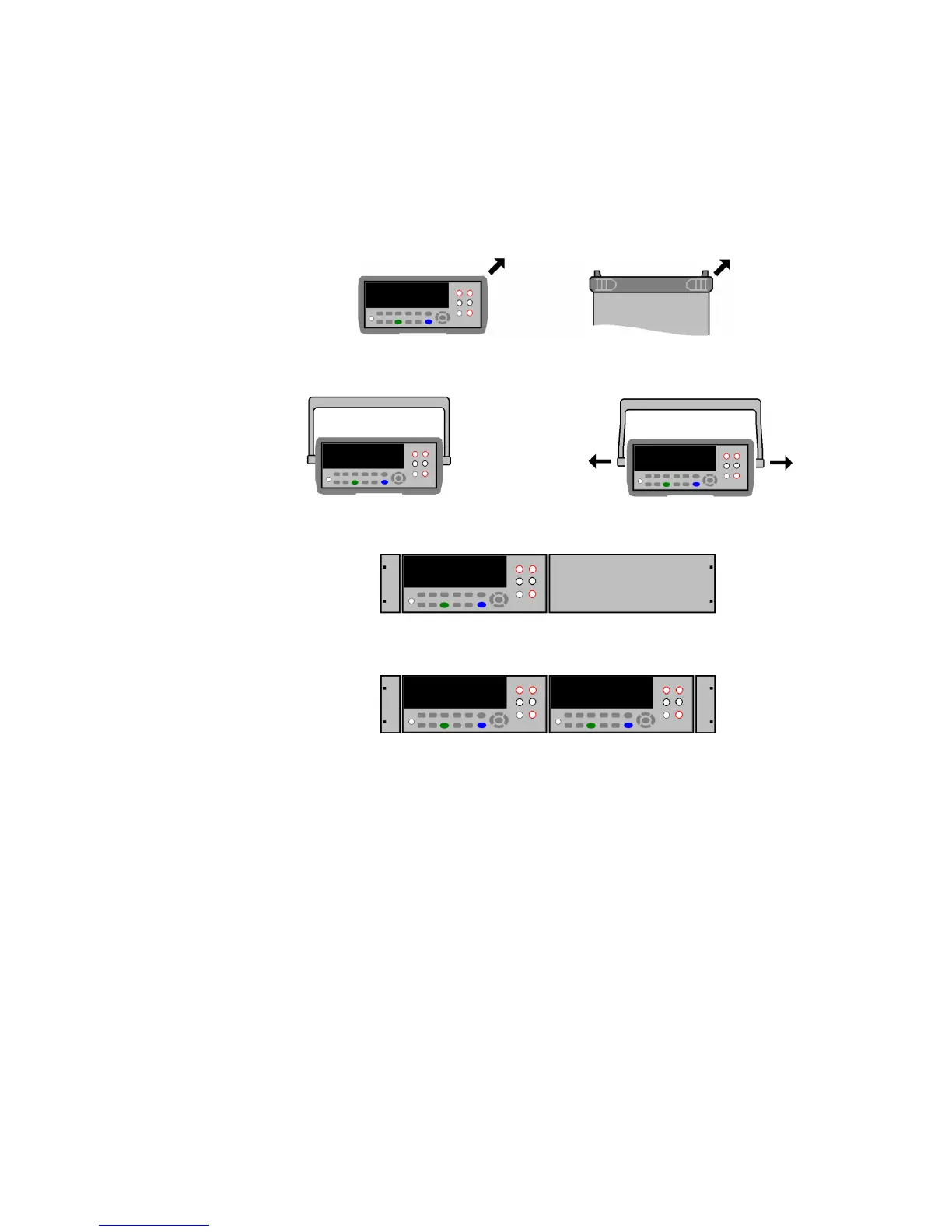

To remove each bumper, stretch a corner and slide it off.
To remove the handle, rotate it to the vertical position and pull the ends outward.
To rack mount a single instrument, order adaptor kit 5063-9240
To rack mount two instruments side-by-side, order lock-link kit
5061-8769 and flange kit 5063-9212
