Agilent 5110/5100 ICP-OES Service Manual Agilent Restricted 103
4 Removal/ Installation, Replacement and Adjustment
Plasma interlocks and sensors
Plasma interlocks and sensors
Section Contents:
RF Door interlock switches 103
Plasma sensor 104
RF1 (SSRF exhaust) temperature sensor 105
RF2 (Plasma exhaust) temperature sensor 105

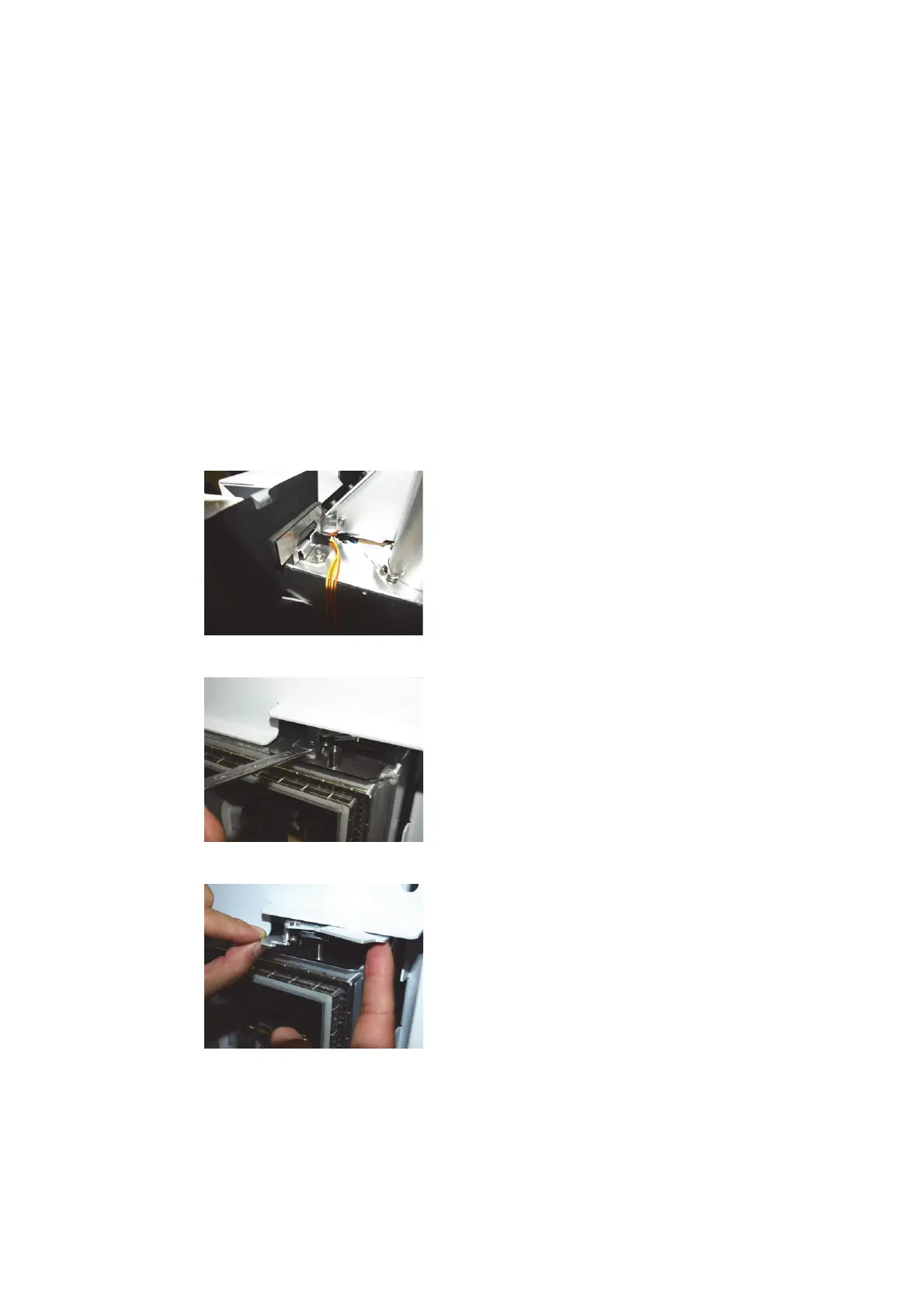

RF Door interlock switches
1 Disconnect loom to micro switch assembly.
2 Remove 1 x 7mm nut that secures assembly to RF box.
3 Remove assembly.
